Plaats van herkomst: | China (Mainland) |
Merknaam: | Kacise |
Certificering: | certificate of explosion-proof, CE |
Modelnummer: | KSFG-50 |
Min. bestelaantal: | 1pcs |
---|---|
Verpakking Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Levertijd: | 5-8 working days |
Betalingscondities: | T/T, Western Union, MoneyGram |
Levering vermogen: | 1000 Pieces per Week |
Leveringsvoltage (v): | +5 | Bias drift (°) /h (10s glad) -45~ + 70°C: | ≤0.3 |
---|---|---|---|
Opslagtemperatuur (℃): | -50 ¢ + 80 | Dynamisch bereik (°)/s: | ± 900 |
Niet-lineaire schaalfactor (ppm): | ≤ 10 | Willekeurige wandelcoëfficiënt ((o) /h^1/2: | ≤0,01 |
starttijd (en): | 5 | Bias drift (°) /h (10s glad, temperatuur vast): | ≤0.1 |

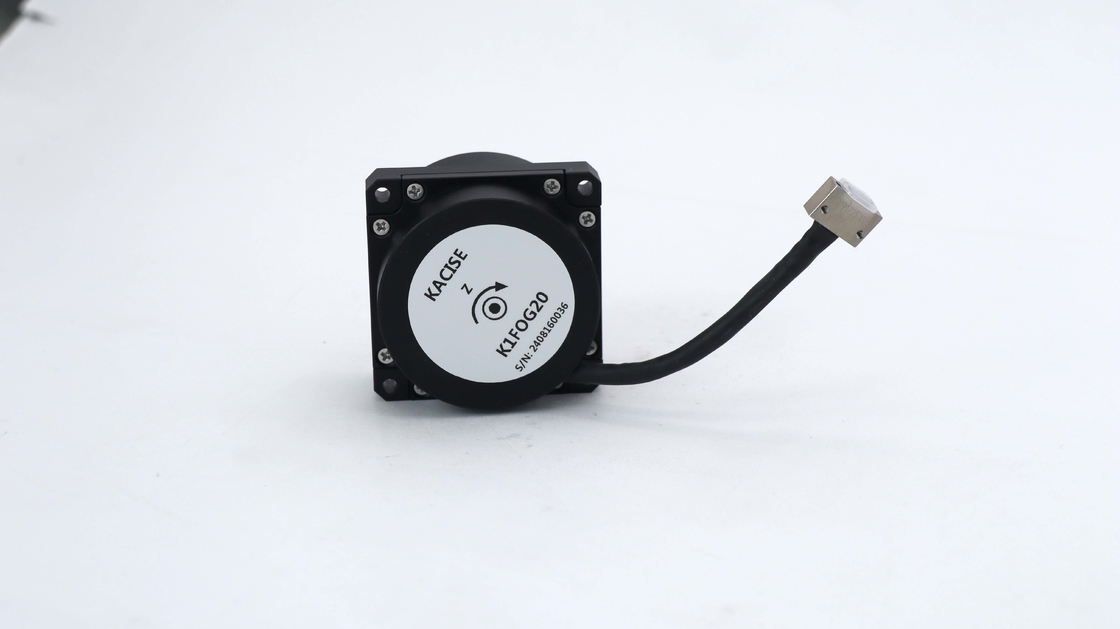

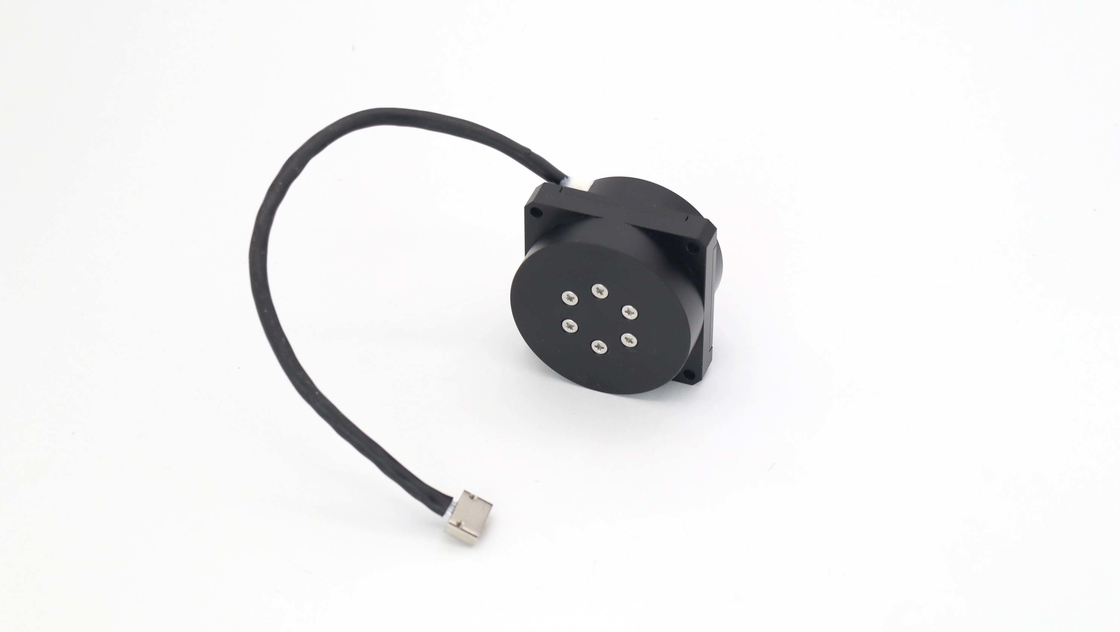

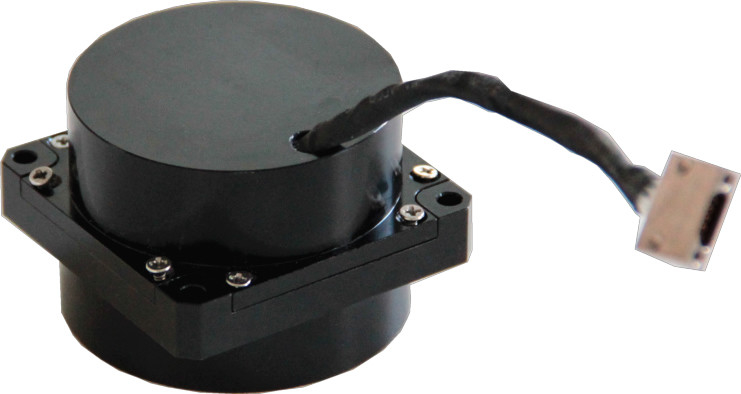

Dit apparaat fungeert als een traagheidshoekfrequentiesensor met behulp van het optische Sagnac-effect om de rotatiehoek snelheid van de drager langs zijn gevoelige as te meten.Gebruik van een digitaal detectiecircuit met gesloten lus, het extraheert het verschil in optisch pad dat wordt veroorzaakt door externe fysieke hoeksnelheid in de richting van de klok.de terugkoppeling en controle in gesloten lus zijn uitgevoerd;, waardoor in realtime snelheidssignalen kunnen worden gedetecteerd.
Functie: Dit product bestaat uit twee delen: een optische hoeksnelheidsgevoelige eenheid en een signaaldetectie, die informatie over een eenassige hoekverhoging en informatie over de interne temperatuur verstrekt.
Toepassingsgebied The products are mainly suitable for photoelectric crane / crane / flying platform / inertial navigation / inertial measurement system / optical / photographic instrument / platform stabilization device / inertial measurement instrument and other applications.
Installatie-modus 1.

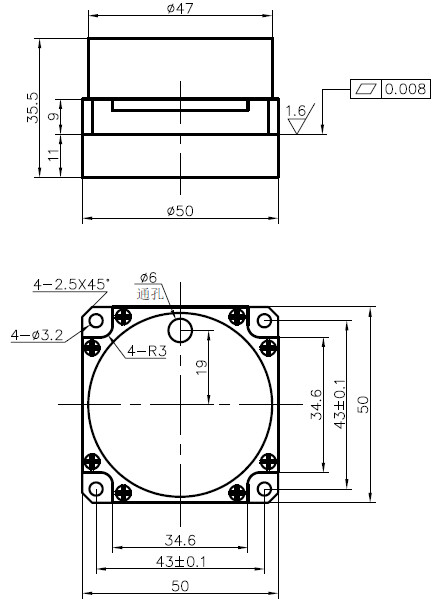

Installatiemodus: 2e dimensie: 50X50X36
- Ik weet het niet. | testpunt | H | L |
1 | Afmetingen (mm) | 50 × 50 × 36 | 50 × 50 × 36 |
2 | starttijd (en) | 5 | 5 |
3 | Bias drift (°) /h (10s glad, temperatuur vast) | ≤ 0.1 | ≤ 0.3 |
4 | Bias drift (°) /h (10s glad) -45~ + 70°C | ≤ 0.3 | ≤ 0.5 |
5 | Biasherhaalbaarheid (°) /h | ≤ 0.05 | ≤ 0.1 |
6 | Willekeurige wandelcoëfficiënt(o)/h1/2 | ≤ 0.01 | ≤ 0.02 |
7 | Niet-lineaire schaalfactor (ppm) | ≤ 10 | ≤ 20 |
8 | Herhaalbaarheid door schaalfactor (ppm) | ≤ 10 | ≤ 20 |
9 | Operatietemperatuur °C | -45 ¢ + 70 | -45 ¢ + 70 |
10 | Bergingstemperatuur (°C) | -50 ¢ + 80 | -50 ¢ + 80 |
11 | Dynamisch bereik (°) / s | ± 900 | ± 900 |
12 | Voerspanning (V) | +5 | +5 |
13 | Vermogenverbruik in vaste toestand (volledige temperatuur) (W) | < 4 | < 4 |
14 | gewicht (g) | < 130 | < 130 |
Alle elektronische gyroscopesensoren moeten worden verpakt en verzonden volgens de volgende richtlijnen:
