85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G

AC Digital Multifunction Meter

300V AC Digital Multifunction Meter

Merknaam:

Selec

Certificering:

Neem contact met ons op

Vraag een offerte

85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G

Productgegevens

Voedingsspanning:

85 tot 300 V AC / DC (45/65 Hz)

Afmeting:

96 x 96 mm

Montage-type:

Montage van het paneel

Certificering:

CE, RoHS, UL & MID

Hoogtepunt:

300V AC DC Digitale Multifunctionele Meter, Selec MFM384-C-CU-G

Markeren:

AC Digital Multifunction Meter

300V AC Digital Multifunction Meter

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stuks

Verpakking Details

elke eenheid heeft een individueel doosje en alle dozen zijn verpakt in standaardverpakkingen of op

Levertijd

5-8 werkdagen

Betalingscondities

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Levering vermogen

1000 stuks per week onderhandelbaar

Verwante producten

KMC2000MICRO DIFFERENTIAL DRUKMETER

Vind de beste prijs

Dwyer Magnesense MS-111 Micro Differentiële Druksensor

Vind de beste prijs

KMC-Y250BF drukmeter 0-60mpa voor gaswater olie vloeibare medium

Vind de beste prijs

3000MR 3000MRS Combinatie Manometer met Lage en Hoge Setpoints

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

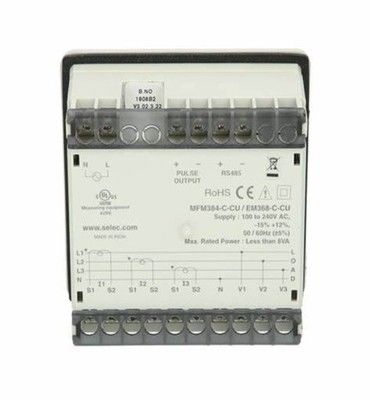

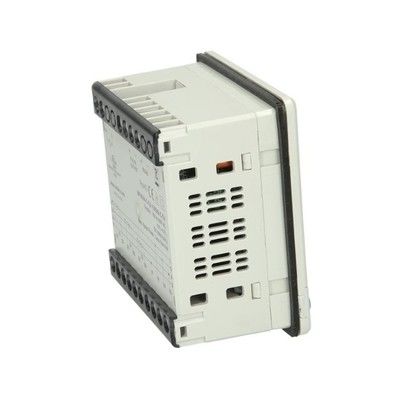

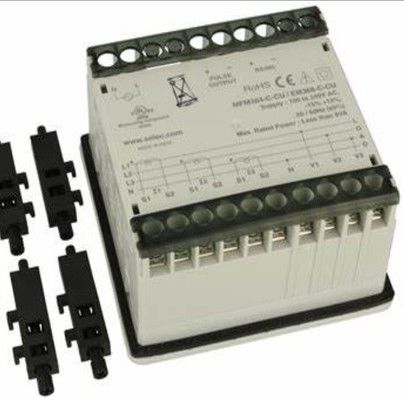

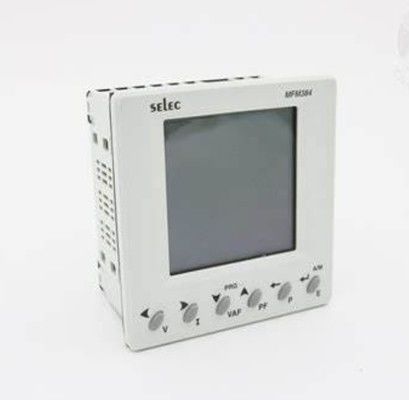

85 to 300V AC DC Digital Multifunction Meter Selec MFM384-C-CU-G

Display Type	LCD with Backlight, Bar graph Representation for Current
Display Configuration	4 Rows of 4 Digits, 1 Row of 8 Digits
Electrical Connection	3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W
Type of Output	Pulse Output
Features	%THD upto 31st Level, Max / Min Demand (Power), Max Demand Current, Phase Sequence Detection
Communication Protocol	RS485 and MODBUS RTU
CT Primary	1 / 5 A to 10 kA (Programmable for Any Value)
CT Secondary	1 / 5 A ( Programmable )
PT Primary	100 V to 500 kV (Programmable for Any Value)
PT Secondary	100 to 500V AC (L - L) (Programmable for any value)
Rated Input Current	Nominal 5A AC (Min – 11mA; Max – 6A)
Supply Voltage	85 to 300V AC / DC (45/65Hz)
Size	96 x 96mm
Mounting Type	Panel Mount
Certification	CE, RoHS, UL & MID

Type	Energy Monitor
Measuring Type	Current, Voltage, Wattage
Measuring Range	-
Display Type	LCD - Black Characters, Backlight
Number of Characters Per Row	4, 4, 4, 4, 8
Display Characters - Height	0.450" (11.43mm)
Output Type	-
Voltage - Supply	100 ~ 240VAC
Panel Cutout Dimensions	Square - 91.50mm x 91.50mm
Mounting Type	Panel Mount
Termination Style	Screw Terminal
Ingress Protection	IP54 - Dust Protected, Water Resistant
Features	-
Operating Temperature	-10°C ~ 55°C
Weight	-
Base Product Number	MFM384

realtime conditions. Input Specifications: Electrical Connection 3Ø-3/4 wire, 2Ø-3 wire, 1Ø-2 wire Input Voltage Range 11 to 300V AC, (Phase to Neutral) 19 to 519V AC, (Phase to Phase) Input Current Range Nominal 5A AC (Min-11mA, Max-6A) Frequency 45Hz - 65Hz Display Scrolling Automatic / manual Power Consumption 8VA Max Display Reset Programmable (For energy) Memory Retention 10 years (For energy) Measuring Parameters Voltage (L-L / L-N) (Individual / Average) Current (I1, I2, I3) (Individual / Average) Frequency, Power Factor (Individual / Total) Active, Reactive & Apparent power (Individual / Total), Active, Reactive & Apparent Energy (Total), Demand (Min / Max Active Power, Min / Max Reactive Power, Max Apparent Power), Max Demand Current, Neutral Current, Phase Sequence Detection. Output Specifications: Pulse Output Voltage Range - External 24V DCmax Current Capacity - 100mA max ± Pulse Width 100 ms 5 ms Communication Interface RS485 and MODBUS RTU
