Name: Surface Scattering Light Turbidity Detector with 0-2000 NTU Range and LED Light Source for Water Quality Analysis
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TB830D
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > de sensor van de waterkwaliteit >

Surface Scattering Light Turbidity Detector with 0-2000 NTU Range and LED Light Source for Water Quality Analysis

0-2000 NTU range Turbidity Detector

Surface scattering method Turbidity Analyzer

LED light source Water Quality Sensor

Merknaam:

Yokogawa

Modelnummer:

TB830D

Neem contact met ons op

Vraag een offerte

Surface Scattering Light Turbidity Detector with 0-2000 NTU Range and LED Light Source for Water Quality Analysis

Productgegevens

meetmethode:

Oppervlakteverstrooiingsmethode

Bereik (standaard van troebelheid: formazine):

0-2 tot 0-2000 NTU

Temperatuur:

0 tot 50 ° C

Stroomsnelheid:

1.5 tot 2 l/min

Druk:

500 kPa Max

Markeren:

0-2000 NTU range Turbidity Detector

Surface scattering method Turbidity Analyzer

LED light source Water Quality Sensor

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Vind de beste prijs

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Vind de beste prijs

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Vind de beste prijs

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

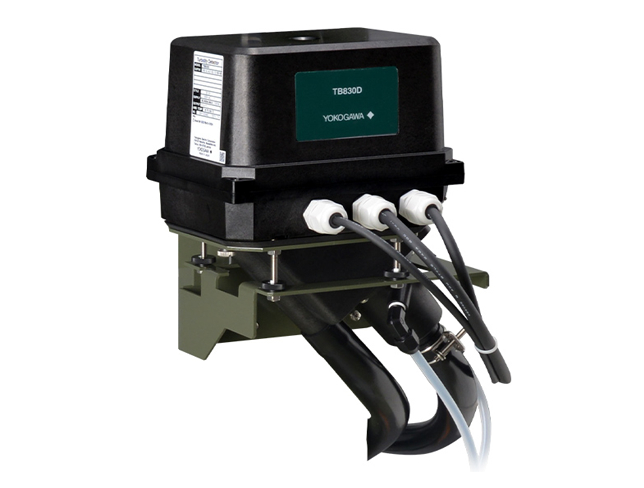

Surface Scattering Light Turbidity Detector TB830D

Reduce maintenance - Digital solution for water quality

Many of our customers face these challenges - Yokogawa Turbidity Analyzers TB800 series resolve them.

Yokogawa's turbidity meters have been developed and improved to suit various applications in water treatment plant turbidity measurement. As a result, we have accumulated many achievements and gained the trust of our customers since our first product was launched in 1959.

Japan's most trusted turbidimeter*.

The TB830D is part of the SENCOM4.0 platform family and can connect to FLXA402T. Thanks to a smart unit equipped detector, TB830D gives you more insight into the ordinary operation.

The TB830D is a turbidity analyzer that equipped LEDs as the light source, is dirt-resistant, and offers reliable measurements and reduced OPEX due to the addition of advanced diagnostic functions.

*Based on a Yokogawa survey in 2019

Less susceptible to contamination due to non-contact with the sample

Compatible with various applications

Surface scattering measurement method minimizes contamination
LED light source for 3-year long life and reduced maintenance costs
High sensitivity and high accuracy with long-standing reliability
Good linearity and reproducibility
Measuring range from 0-2 NTU to 0-2000 NTU
Improved cleaning system reduces maintenance
Easy-to-clean cell structure (by GS)

Multi sensor input

Not only Turbidity Detector but also Chlorine Sensor Unit, pH sensor and conductivity sensor are connectable to one transmitter.

Application

Turbidity of tap water, sewage, river water and water used in general processes.

Water Purification Treatment

Sedimentation
Flocculation
Settling Basins
Clean water reservoir
Distributing pump
Distribution tank & Piping

Wastewater Treatment

Discharge/Reuse

Specifications

Measuring method	Surface scattering method
Measuring Range (Turbidity standard: Formazin)	0-2 to 0-2000 NTU
Sample Conditions	Temperature: 0 to 50°C Flow Rate: 1.5 to 2 L/min Pressure: 500 kPa max
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)
Cleaning system	Automatic wash

Performance

Linearity	0-1000 NTU: ±2% of reading or ±0.04 NTU whichever is greater over 1000 NTU: ±4% of reading
Repeatability	±1% of reading or ±0.02 NTU whichever is greater
