Name: Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2000-60pa
Price: 152.00 USD
Availability: InStock

Thuis > producten > Precieze druksensor >

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Dwyer Mechanical Micro Differential Pressure Gauge

Micro Differential Pressure Gauge

Merknaam:

Dwyer

Certificering:

Modelnummer:

2000-60pa

Neem contact met ons op

Vraag een offerte

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Productgegevens

Warranty:

1 Year

Model Number:

2000 Series

Type:

Differential

Connection:

1/4NPT

Weight:

0.5kg

Customized Support:

OEM, ODM

Markeren:

Dwyer Mechanical Micro Differential Pressure Gauge

Micro Differential Pressure Gauge

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stuks

Verpakking Details

elke eenheid heeft een individueel doosje en alle dozen zijn verpakt in standaardverpakkingen of op

Levertijd

5-8 werkdagen

Betalingscondities

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Levering vermogen

1000 stuks per week onderhandelbaar

Verwante producten

KMC2000MICRO DIFFERENTIAL DRUKMETER

Vind de beste prijs

Dwyer Magnesense MS-111 Micro Differentiële Druksensor

Vind de beste prijs

KMC-Y250BF drukmeter 0-60mpa voor gaswater olie vloeibare medium

Vind de beste prijs

3000MR 3000MRS Combinatie Manometer met Lage en Hoge Setpoints

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

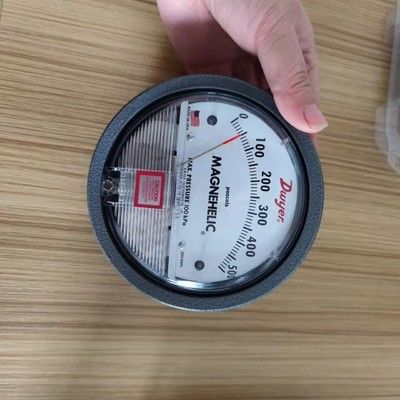

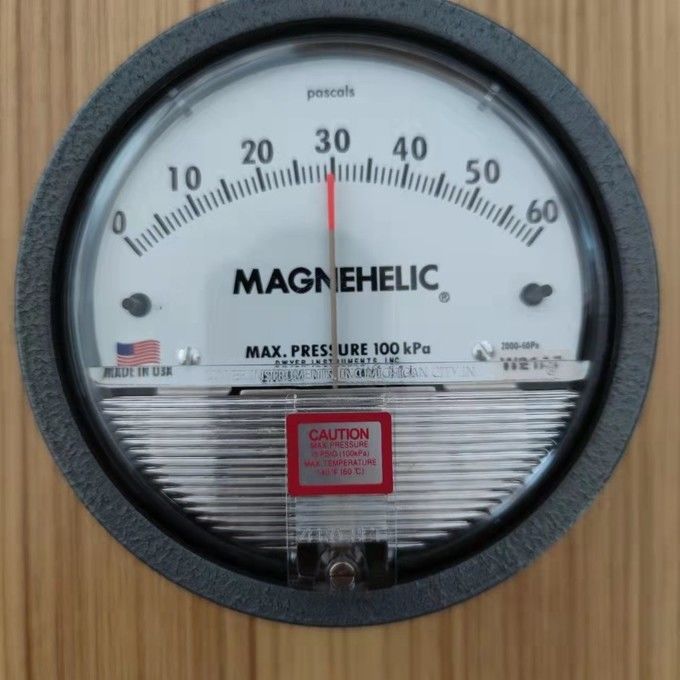

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Attribute	Value
Warranty	1 Year
Model Number	2000 Series
Type	Differential
Connection	1/4NPT
Weight	0.5kg
Customized Support	OEM, ODM

Product Introduction

Dwyer Magnehelica mechanical differential pressure gauge delivers high-precision measurement within ±2% of full scale, featuring 81 selectable ranges to precisely meet diverse application needs. Utilizing simple, non-wearing Magnehelica moving components, this gauge rapidly indicates low pressures of air or non-corrosive gases—including positive pressure, negative pressure (vacuum), or differential pressure.

Engineered to resist shock, vibration, and overpressure, it eliminates issues like manometer liquid evaporation, freezing, or poisoning, while offering a cost-effective solution. Widely applied in measuring fan pressure, blower resistance, filter pressure drop, wind speed, furnace draft, orifice plate pressure loss, foaming system liquid level, fluid amplifier pressure, and hydraulic system pressure. It also detects gas-to-air ratio controls, automatic valves, and monitors blood/respiratory pressure in medical care equipment.

Key Features

High Accuracy: ±2%~4% of full scale at 21°C (70°F), ensuring reliable measurements.
Versatile Ranges: 81 range options with metric/imperial units for flexible applications.
Non-Wearing Design: Magnetic transmission eliminates friction, wear, and hysteresis.
Robust Construction: Shock, vibration, and overpressure resistant; no liquid-related failures.
Easy Installation: Surface or flush mounting; compatible with Model A-610 pipe mount.
Calibration Flexibility: Adjustable for horizontal/vertical use (re-zero for optimal accuracy).
