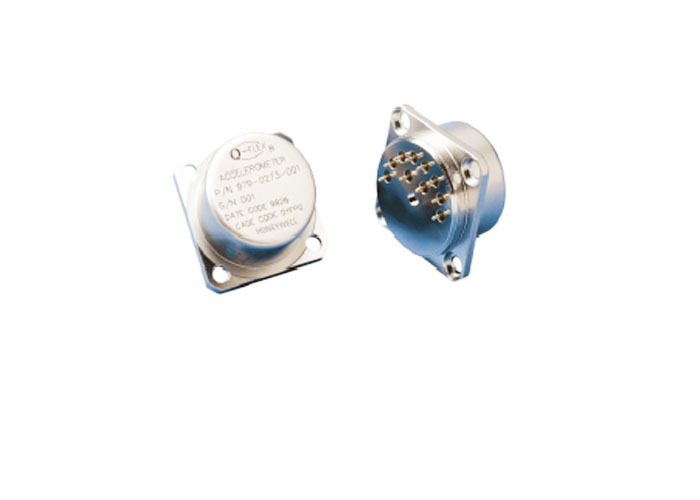

Name: Honeywell QA-T160 QA-T185 High-Temperature Accelerometer Sensor ±20g
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: QA-T160 en QA-T185
Price: 478.00 USD
Availability: InStock

Thuis > producten > Sensor van de versneller >

Honeywell QA-T160 QA-T185 High-Temperature Accelerometer Sensor ±20g

Honeywell high-temperature accelerometer sensor

QA-T160 accelerometer sensor ±20g

QA-T185 industrial accelerometer sensor

Merknaam:

honeywell

Certificering:

Modelnummer:

QA-T160 en QA-T185

Neem contact met ons op

Vraag een offerte

Honeywell QA-T160 QA-T185 High-Temperature Accelerometer Sensor ±20g

Productgegevens

Invoerbereik:

±20 g

Vooroordeel:

< 20 mg

Schaalfactor:

2,75 ma/g ± 1,8%

Trillingsrectificatie (50-500 Hz):

<100 µg/g²

Drempel en resolutie:

<5 µg

Markeren:

Honeywell high-temperature accelerometer sensor

QA-T160 accelerometer sensor ±20g

QA-T185 industrial accelerometer sensor

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuks per week

Verwante producten

KSIMU005M Three Axis Quartz IMU MEMS Accelerometer Sensor

Vind de beste prijs

KSINS010C Laser Inertial Navigation System 0.5nmile/h Accuracy

Vind de beste prijs

Hoogwaardige trillingsbewaking met accelerometerdetector Ф25.4mm X30mm

Vind de beste prijs

Quartzversnellingsmeters voor satellietbesturingseenheden met Bias ≤ 5 mg en Range = ± 20 g

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

Honeywell QA-T160 and QA-T185 High-Temperature Accelerometers

Product Overview

Honeywell's QA-T160 and QA-T185 accelerometers utilize high-temperature Q-Flex® technology in a rugged package, specifically designed for down-hole measurement-while-drilling and wireline applications. Featuring a patented Q-Flex etched-quartz-flexure seismic system with an amorphous quartz proofmass structure, these sensors deliver exceptional stability in bias, scale factor, and axis alignment.

Key Specifications

Attribute	Value
Input Range	±20 g
Bias	<20 mg
Scale Factor	2.75 mA/g ±1.8%
Vibration rectification (50-500 Hz)	<100 µg/g²
Threshold and resolution	<5 µg

Key Features

High-temperature capability: Suitable for extreme operating environments
Environmentally rugged: Withstands vibration and shock
Analog output: Provides acceleration measurement signals
Mounting flange options: Square or round configurations available
Field-adjustable range: On-site calibration capability
Internal temperature sensor: Enables thermal compensation
Low power electronics: Energy-efficient operation
Built-in test: Convenient self-test functionality

Configuration Drawing

Performance Characteristics

Input Range: ±20 g

Bias: <20 mg

Scale Factor: 2.75 mA/g ±1.8%

Vibration rectification (50-500 Hz): <100 µg/g²

Threshold and resolution: <5 µg

Environmental Specifications

Vibration: 30g peak (sine), 20 grms (random)

Shock: 1000g (operating), 2000g (survival)

Physical Specifications

Weight: 55 grams

Size: 1.0 in. dia. × 0.73 in. high

Core materials: Stainless Steel

Model Comparison

Specification	QA-T160	QA-T185
RSS Bias & Scale Factor - One-year repeatability	1 mg	1.5 mg
Operating temperature	-40 to 160°C	-40 to 185°C
Survival temperature	175°C intermittent	200°C intermittent

Additional product specifications, outline drawings, block diagrams, and test data are available upon request.
