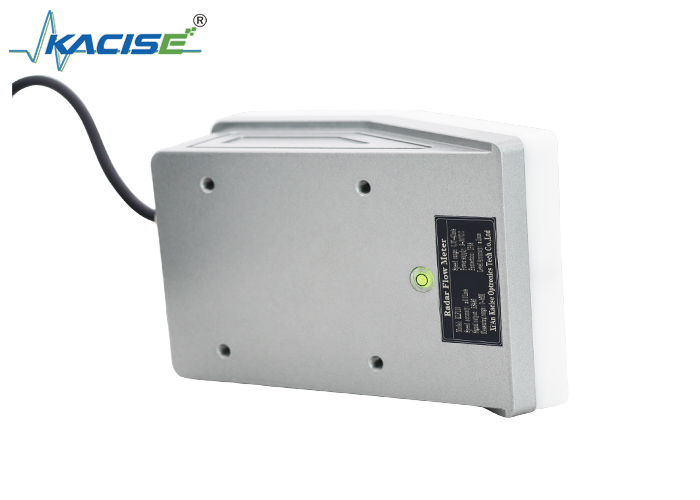

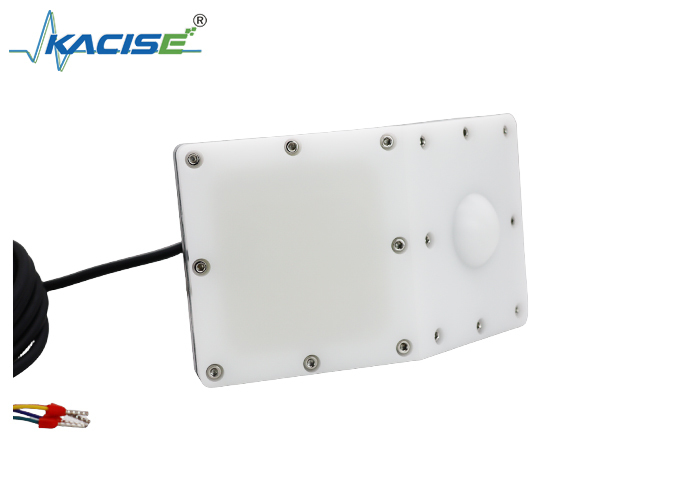

Name: KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KLF110
Price: 892.00 USD
Availability: InStock

Thuis > producten > ultrasone stroommeter >

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

KLF110 ultrasonic flow meter

radar flow meter 30m/s

IP68 waterproof flow meter

Plaats van herkomst:

China

Merknaam:

KACISE

Certificering:

Modelnummer:

KLF110

Neem contact met ons op

Vraag een offerte

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

Productgegevens

Snelheidsmetbereik:

0,1 m/s -30 m/s

Snelheidsmeting nauwkeurigheid:

± 0,01 ms (radarsimulatiekalibratie)

Blind gebied om te variëren:

8 cm

Maximaal bereik voor variërend:

60m

Accuraatheid in de verte:

± 1 mm

Markeren:

KLF110 ultrasonic flow meter

radar flow meter 30m/s

IP68 waterproof flow meter

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Video

High performance goede prijs draagbare ultrasoon open kanaal stroommeter

Vind de beste prijs

Video

Strommeter op batterij

Vind de beste prijs

De ultrasone Doppler sensor kan de stroom snelheid, stroom en vloeistof niveau te meten

Vind de beste prijs

Watermedium KUF100B Economisch Ultrasone Transit Time Stroommeter

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

KLF110 Radar Flow Meter 30m/s Speed Range IP68 Waterproof

Product Attributes

Speed measurement range	0.1 m/s -30m/s
Speed measurement accuracy	±0.01ms (radar simulator calibration)
Blind area for ranging	8cm
Maximum range for ranging	60m
Ranging accuracy	±1mm

Product Description

The KLF110 radar flow meter utilizes radar technology to measure water flow velocity and level, converting these measurements through an integral model. It provides real-time, around-the-clock water flow monitoring with non-contact measurement that remains unaffected by environmental conditions.

Key Features

Advanced Radar Technology: Uses mixed-band radar for non-contact measurement of flow velocity, liquid level, and flow rate simultaneously without interference
Low Maintenance: Not affected by sediment or other environmental factors
Robust Design: IP68 waterproof rating suitable for various field environments and extreme weather conditions
Compact & Cost-Effective: Small footprint with excellent value
Built-in Protection: Integrated anti-reverse connection, lightning protection, and overvoltage protection
Easy Integration: Supports Modbus-RTU protocol for simple system integration

Technical Specifications

Specification	Value
Speed measurement range	0.1 m/s - 30 m/s
Speed measurement accuracy	±0.01 m/s (radar simulator calibration)
Speed measurement pitch angle (auto compensation)	0-80°
Speed measurement antenna beam angle	12°×25°
Ranging blind area	8 cm
Maximum ranging distance	60 m
Ranging accuracy	±1 mm
Ranging antenna beam angle	6°
Power supply range	9-28 VDC
Working current	25 mA @12V
Communication interface	RS485
Communication protocol	Modbus (9600/115200)
Operating temperature	-30°C to 70°C
Housing material	Aluminum alloy, PBT
Dimensions	142 mm × 84 mm × 94 mm
Protection rating	IP68
Installation method	Bracket
