Name: Honeywell FP5000 Configurable Pressure Transducer with 0.36 psig/a to 5,000 psig/a Range and ±0.1% Full-Scale Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FP5000
Price: 152.00 USD
Availability: InStock

Thuis > producten > Precieze druksensor >

Honeywell FP5000 Configurable Pressure Transducer with 0.36 psig/a to 5,000 psig/a Range and ±0.1% Full-Scale Accuracy

0.36 psig/a to 5

000 psig/a Pressure Transducer

±0.1% full-scale accuracy Pressure Sensor

Merknaam:

Honeywell

Modelnummer:

FP5000

Neem contact met ons op

Vraag een offerte

Honeywell FP5000 Configurable Pressure Transducer with 0.36 psig/a to 5,000 psig/a Range and ±0.1% Full-Scale Accuracy

Productgegevens

Markeren:

0.36 psig/a to 5

000 psig/a Pressure Transducer

±0.1% full-scale accuracy Pressure Sensor

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

Vind de beste prijs

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

Vind de beste prijs

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

Vind de beste prijs

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

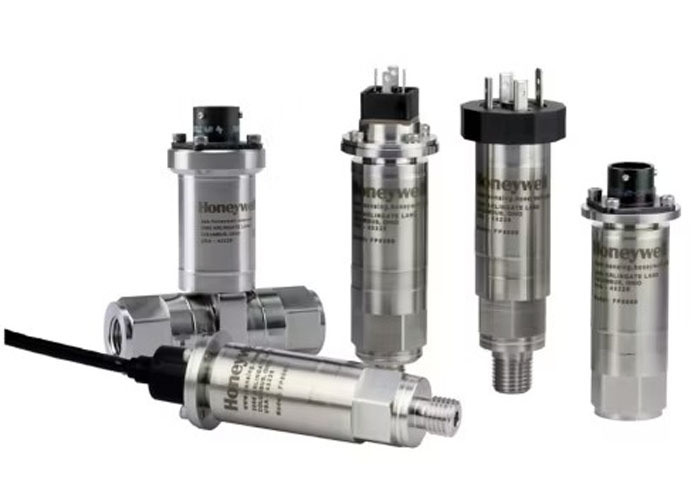

Honeywell FP5000 Pressure Transducers

Configurable gage/absolute pressure transducers with a range of 0.36 psig/a to 5,000 psig/a and ±0.1% full-scale accuracy. Available with multiple output types for versatile applications.

The Honeywell Model FP5000 Series is a media-isolated piezoresistive silicon pressure sensor offering multiple output options (0 V to 5 V, 0 V to 10 V or 4 mA to 20 mA) for reading pressure over the specified full-scale pressure span and temperature range. It is compensated for sensor offset, sensitivity, temperature effects, and non-linearity to offer improved thermal stability and accuracy. Hastelloy® C276 and 316L stainless steel wetted parts provide durability with abrasive or corrosive media.

Key Features

Media-isolated piezoresistive silicon pressure sensor
Multiple output options: 0-5V, 0-10V, or 4-20mA
Compensated for sensor offset, sensitivity, and temperature effects
Improved thermal stability and accuracy
Durable Hastelloy® C276 and 316L stainless steel wetted parts
Resistant to abrasive and corrosive media

Specifications

Industry	Healthcare
