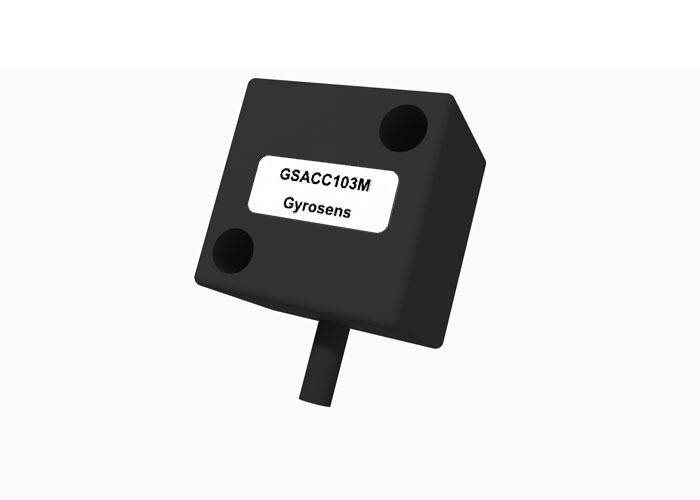

Name: GSACC103M MEMS Accelerometer with ±2000 g Range ≤ 5000 Hz Bandwidth and 0.15mV/g Sensitivity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GSACC103M
Price: 478.00 USD
Availability: InStock

Thuis > producten > Sensor van de versneller >

GSACC103M MEMS Accelerometer with ±2000 g Range ≤ 5000 Hz Bandwidth and 0.15mV/g Sensitivity

±2000 g Range MEMS Accelerometer

≤ 5000 Hz Bandwidth Accelerometer Sensor

0.15mV/g Sensitivity Piezoelectric Accelerometer

Plaats van herkomst:

CHINA

Merknaam:

Gyrosens

Certificering:

Modelnummer:

GSACC103M

Neem contact met ons op

Vraag een offerte

GSACC103M MEMS Accelerometer with ±2000 g Range ≤ 5000 Hz Bandwidth and 0.15mV/g Sensitivity

Productgegevens

Bereik:

±2000 gr

Bandbreedte:

≤ 5000 Hz

Gevoeligheid:

0,15mV/g

Resolutie (°/s):

≤ 0,002 g

Niet-lineair (%FS):

≤ 1% Fs

Markeren:

±2000 g Range MEMS Accelerometer

≤ 5000 Hz Bandwidth Accelerometer Sensor

0.15mV/g Sensitivity Piezoelectric Accelerometer

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Universal Digital Inertial Measurement Unit with ±200°/s Full Scale ≤0.1% Nonlinearity and ≤0.3°/s Bias Repeatability

Vind de beste prijs

GS16488 Inertial Measurement Unit with 1 Channel SPI, Bias Repeatability −40°C ≤ TA ≤ +85°C, and Scale Factor Nonlinearity FS=450 º/s

Vind de beste prijs

GSRBA500D Quartz Flexible Accelerometer with ±70g Range Small Size and High Precision for Aerospace and Military Applications

Vind de beste prijs

GSQAT160 Quartz Flexible Accelerometer Sensor with Bias <20 mg Scale Factor 2.75 mA/g ± 1.8% and Bias Repeatability 1mg

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

GSACC103M MEMS Accelerometers

Key Features

Analog voltage output
High g value and bandwidth
Compact size and lightweight design
Piezoelectric accelerometer technology
Excellent impact resistance and vibration performance

Applications

Measurement of overload value g
Linear acceleration measurement

Technical Specifications

Electrical Characteristics
Input voltage	10±0.1 VDC
Input current	≤10mA
Output Mode	±1 V
Performance Index
Axial direction	Z
Range	±2000 g
Bandwidth	≤ 5000 Hz
Sensitivity	0.15mV / g
Resolution (°/s)	≤ 0.002 g
Nonlinear (%FS)	≤ 1% Fs
Bias	±0.2 V
Bias temperature drift	≤ 0.09mg/ºC
Cross axis sensitivity	≤3%Fs
Start-up time (ms)	≤1 s
Environmental Characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	10000g
Physical Characteristics
Weight (g)	45g
Dimensions	12.5×12.5×9.5 mm

Dimensions

Note: Product specifications may be updated periodically. Please contact the supplier for the latest product manual.
