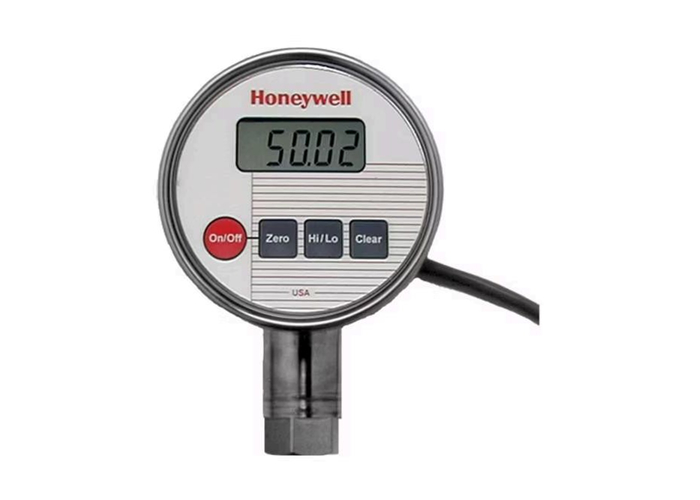

Name: Honeywell Model JS Digital Pressure Gauge with 0.2% FS Accuracy 4 mA to 20mA Output and 1 psi to 10000 psi Range
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: ModelJS
Price: 152.00 USD
Availability: InStock

Thuis > producten > Precieze druksensor >

Honeywell Model JS Digital Pressure Gauge with 0.2% FS Accuracy 4 mA to 20mA Output and 1 psi to 10000 psi Range

0.2% FS accuracy Digital Pressure Gauge

4 mA to 20mA output Pressure Sensor

1 psi to 10000 psi range Precision Pressure Gauge

Merknaam:

Honeywell

Modelnummer:

ModelJS

Neem contact met ons op

Vraag een offerte

Honeywell Model JS Digital Pressure Gauge with 0.2% FS Accuracy 4 mA to 20mA Output and 1 psi to 10000 psi Range

Productgegevens

Lineariteit en hysteresis:

0,2% volledige schaal (beter dan de nauwkeurigheid van de testmeter)

Drukbereik 0 psi tot:

1, 5, 15, 30, 50, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10.000 psi

Hoge en lage opname:

Standaard

Update snelheid:

3 keer per seconde

Standaard::

Modellen JSB, JSE, JSX

Markeren:

0.2% FS accuracy Digital Pressure Gauge

4 mA to 20mA output Pressure Sensor

1 psi to 10000 psi range Precision Pressure Gauge

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Vind de beste prijs

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Vind de beste prijs

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Vind de beste prijs

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

Honeywell Model JS Digital Pressure Gauge

4 mA to 20mA or 0 Vdc to 5 Vdc output | 1 psi to 10000 psi range | 0.2% FS accuracy | Stainless steel wetted material

Overview

The Model JS digital pressure test gauge features 0.2% full scale accuracy using advanced transducer technology. Constructed with Ha C276/316 Stainless Steel wetted material for ranges up to 1,500 psi or 15-5 PH Stainless Steel for higher ranges (1,500 psi and above), providing superior overpressure protection.

This transducer-based design delivers enhanced accuracy across the entire pressure range with no moving parts, ensuring long service life and minimal recalibration needs. The stainless steel NEMA construction offers EMI and RFI protection, while the high-resolution digital display eliminates reading errors associated with analog gauges.

Key Features

4 mA to 20 mA (two-wire) and 0 Vdc to 5 Vdc analog outputs
Two programmable limits and relays (optional)
Test gauge accuracy - 0.2% full scale
High and low detection - Microprocessor based
Ranges to 10000 psi - gage, absolute, vacuum, or compound
4½ digit display with 0.5 in height
Customer recalibration capability
Zero offset/tare function
On/off switch disable feature
Optional carrying case and panel mounting ring
Optional pressure port adapters
NEMA 4 rating (optional)
NIST traceable (optional)

Performance Specifications

Characteristic	Measure
Linearity and hysteresis	0.2% full scale (better than test gauge accuracy)
Pressure range	1, 5, 15, 30, 50, 100, 200, 300, 500, 750, 1000, 1500, 2000, 3000, 5000, 7500, 10000 psi
High and low capture	Standard
Update speed	3 times per sec
Zero and span signal adjustment	Standard: Models JSB, JSE, JSX

Environmental Specifications

Characteristic	Measure
Temperature, operating	-1°C to 71°C [30°F to 160°F]

Electrical Specifications

Characteristic	Measure
Rating	NEMA 2 (optional NEMA 4)
Power, Model JSB	11 Vdc to 32 Vdc (depending on loop resistance) @ 20 mA
Power, Model JSE	11 Vdc to 32 Vdc @ 100 mA
Power, Model JSR	11 Vdc to 32 Vdc @ 100 mA
Power, Model JSX	11 Vdc to 32 Vdc @ 100 mA
Electrical connection	3 ft cable (standard)

Mechanical Specifications

Characteristic	Measure
Diameter	93.98 mm [3.7 in]
Display	4½ LCD digits - 12.7 mm [0.5 in] high
Pressure port	1/4-18 NPT male (1 psi to 300 psi); 9/16-18 UNF-2B female straight thread with SAE spec J514 o-ring boss (500 psi and above)
Wetted parts	Stainless steel
Case material	Stainless steel
Face membrane	Tactile feedback raised buttons
Calibration data	Stored on memory chip
Limits and relays	Models JSR and JSX

Mounting Dimensions and Characteristics

Order Guide

Part Number	Description
060-CS98644908738	JSR15AC:MODEL JS, 15 PSIA
77-01635-03	JSB15VB:MODEL JS, 15 PSI
77-01648-04	JSE30GC:MODEL JS, 30 PSI
77-01648-07	JSE200GC:JSE200GC MODEL JSE, 200 PSIG
77-01648-11	JSE1KGC:MODEL JS, 1K PSI
77-01648-13	JSE2KGC:MODEL JS, 2K PSI
77-01648-15	JSE5KGC:MODEL JS, 5K PSI
77-01648-16	JSE7.5KGC:MODEL JS, 7.5K PSI
77-01648-17	JSE10KGC:MODEL JS, 10K PSI
77-01649-06	JSE100AC:MODEL JS, 100 PSI
77-01653-07	JPW50GZQ4:MODEL JP, 50 PSI
77-01654-01	JSB1VC:MODEL JS, 1 PSI
77-01654-03	JSB15VC:MODEL JS, 15 PSI
77-01668-03	JSB15GC:MODEL JS, 15 PSI
77-01668-05	JSB50GC:MODEL JS, 50 PSI
77-01668-06	JSB100GC:MODEL JS, 100 PSI
77-01668-07	JSB200GC:MODEL JS, 200 PSI
77-01668-08	JSB300GC:MODEL JS, 300 PSI
77-01668-09	JSB500GC:MODEL JS, 500 PSIG
77-01683-06	JSR100GC:MODEL JS, 100 PSI
77-01683-17	JSR10KGC:MODEL JSR, 10,000 PSIG
77-01774-17	JSE10KGB:MODEL JS, 10K PSI
77-01864-01	JSB50CC:MODEL JS, 50 PSI
