Name: GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GKE-serie
Price: 152.00 USD
Availability: InStock

Thuis > producten > Precieze druksensor >

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

IEC 20 mm mounting Safety Key-Operated Switch

IP66/67 rated Dual Entry Safety Switch

NEMA 1 4X 12 13 compliant GKE Series Safety Switch

Merknaam:

Honeywell

Modelnummer:

GKE-serie

Neem contact met ons op

Vraag een offerte

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Productgegevens

Contactmateriaal:

zilveren legering

Materiaal actuatorsleutel:

Roestvrij staal

Elektrische verbinding:

20 mm of 0,5-14 NPT-buis waarbij elk bedradingspunt in de schakelaar een aansluitschroef met schroef

Contact-/schakelmogelijkheden¹:

1NC/1NO langzame actie BBM, 1NC/1NO onverwachte actie, 2NC langzame actie

Contactontwerp:

Dubbele pauze, elektrisch gescheiden (Zb)

Markeren:

IEC 20 mm mounting Safety Key-Operated Switch

IP66/67 rated Dual Entry Safety Switch

NEMA 1 4X 12 13 compliant GKE Series Safety Switch

Betaling en verzendvoorwaarden

Min. bestelaantal

1 STKS

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

Vind de beste prijs

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

Vind de beste prijs

GKE Series Safety Key-Operated Switch with IEC 20 mm Mounting IP66/67 Rated and NEMA 1 4X 12 13 Compliance

Vind de beste prijs

Honeywell GKM Series Compact SIL3 Capable Key-Operated Safety Interlock Switch with IP66/IP67 Rating and NEMA 1, 12, 13 Compliance

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

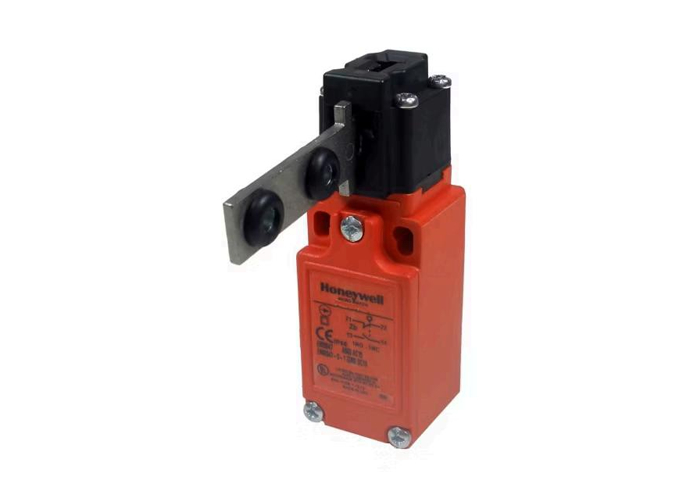

Honeywell GKE Series Safety Key-Operated Switch

Glass-filled polyester housing. IEC 20 mm mounting. cULus, CE, SIL3. IP66/67. NEMA 1, 4X (indoor), 12, 13. Silver contacts

The GKE Series safety key-operated switch provides enhanced reliability for safety hard guarding applications in a compact, cost-effective package. Featuring positive opening safety contacts and multiple contact configurations, the GKE's rotating head allows actuator engagement from five orientations. The switch features double insulation per IEC 60947-5-1, and has a choice of two standard actuators.

Key Features

Red switch body for easy safety recognition
20 mm to 22 mm mounting centers per EN50047 which accept M4 or #8 mounting hardware
Different contact options: 1NC (normally closed) and 1NO normally open) or 2NC
All NC contacts are positive opening
Actuator head 60947-5-1 3 specification
Actuator head can be indexed in any of four positions, in 90° increments
Switch chamber sealed to IP66/IP67 and NEMA 1, 4X (indoor), 12, 13
CE, CCC, and cULus certifications for global applications
Different threaded conduit options
Designed and agency evaluated, per SIRA, for safety functions up to and including a SIL3 level

Applications

Safety interlock for guards or doors on equipment and machinery
Designed for hinge or sliding guards or doors

Differentiation

Switch design with dual entry (side or top) for actuator key
Compact size of 31 mm L × 33 mm W × 96 mm H [1.2 in L × 1.3 in W × 3.8 in H]
Rigid or flexible stainless steel actuator keys

Available Models

Part Number	Description
GKEA01L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Snap Action, 12 NPT, Plastic, Silver Contacts
GKEA03L	SAFETY LIMIT SWITCH-HEAVY DUTY
GKEA06L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 2NC Direct Opening, Slow Action, 12 NPT, Plastic, Silver Contacts
GKEC01L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Snap Action, 20 mm, Plastic, Silver Contacts
GKEC03L	MICRO SWITCH GKE Series Dual Entry Key-Operated Safety Switch, 1NC1NO Direct Opening, Slow Action, Break-Before-Make (B.B.M.), 20 mm, Plastic, Silver Contacts

TABLE 1. PERFORMANCE SPECIFICATIONS

Characteristic	Parameter
Description	Dual entry key-operated safety interlock switch
Agency certifications	CE, DOC A340 cULus, File E37138 CCC, Certificate # 2011010305489827 SIL, Reference SIRA FSP 09009/02
Housing material	Glass-filled thermoplastic polyester
Actuator key material	Stainless steel
Electrical connection	20 mm or 0.5-14 NPT conduit with each wiring point in switch a threaded terminal screw
Contact/switch options	1NC/1NO slow action BBM, 1NC/1NO snap action, 2NC slow action
Contact design	Double break, electrically separated (Zb)
Contact material	Silver alloy
Electrical ratings	See table 2
Utilization category	1NC/1NO: AC-15, A600; DC13-Q300 2NC: AC-15, A300; DC13-Q300
Rated operational voltage (Ue)	1NC/1NO: 120 Vac, 240 Vac, 600 Vac, 125 Vdc, 250 Vdc 2NC: 120 Vac, 240 Vac, 125 Vdc, 250 Vdc
Rated operational current (Ie)	1NC/1NO: 6 A, 3 A, 1.2A, 0.55, 0.27 2NC: 6 A, 3 A, 0.55 A, 0.27 A
Thermal current (Ith)	10 A
Rated insulation (Ui)	1NC/1NO: 600 V 2NC: 300 V
Rated impulse withstand voltage (Uimp)	2500 V
Short circuit protection device (SCPD)	Class J fuse, 10 A/600 V
Pollution degree	3
Environmental sealing	IP 66/67; NEMA 1, 4X (Indoor), 12, 13
Operating temperature	-25° C to 85° C [-13° F to 185° F]
Shock	50 g per IEC 60068-2-27
Vibration	10 g per IEC 60068-2-6
MCTF (Mechanical life)	15,930,000 cycles
MCTF (Electrical life)	>25,000 cycles with single-sided confidence limit of 75%
SIL Capability	SIL3 capable with HFT=1 with reference to IEC 61508-2:2010 functional safety
Proof test interval	1 year

TABLE 2. ELECTRICAL RATINGS

Designation and Utilization Category	Rated Operational Current Ie (A) at Rated Operational Voltage Ue (V)	24 V	120 V	240 V	380 V	480 V	500 V	600 V
AC-15	A300	-	6 A	3 A	-	-	-	-
AC-15	A600	-	6 A	3 A	1.9 A	1.5 A	1.4 A	1.2 A
DC-13	Q300	2.8 A	0.55 A	0.27 A	-	-	-	-
