Name: TDLAS200B Series Laser Methane Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS200B
Price: 72.00 USD
Availability: InStock

Thuis > producten > Gasdetectorsensor >

TDLAS200B Series Laser Methane Sensor

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Plaats van herkomst:

China

Merknaam:

KACISE

Certificering:

Modelnummer:

TDLAS200B

Neem contact met ons op

Vraag een offerte

Productgegevens

Volume:

53 ml

Meetbereik:

0~5000ppm, 0-10000ppm

Detectieobject:

Methaan (ch4)

Meetprincipe:

Laserabsorptiespectrum (TDLAS)

Statische detectiegrens:

0,5 ppm@25℃ 5SPS (typische waarde, neem contact met ons op voor meer informatie)

De snelste responstijd:

jaren '90

Markeren:

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Betaling en verzendvoorwaarden

Min. bestelaantal

1 STKS

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Video

TDLAS200 automatisch kalibrerende methaanlasersensor

Vind de beste prijs

Video

TDLAS200B Series Laser Methane Sensor

Vind de beste prijs

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

Vind de beste prijs

TDLAS200 Laser methaan sensor met hoge gevoeligheid

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

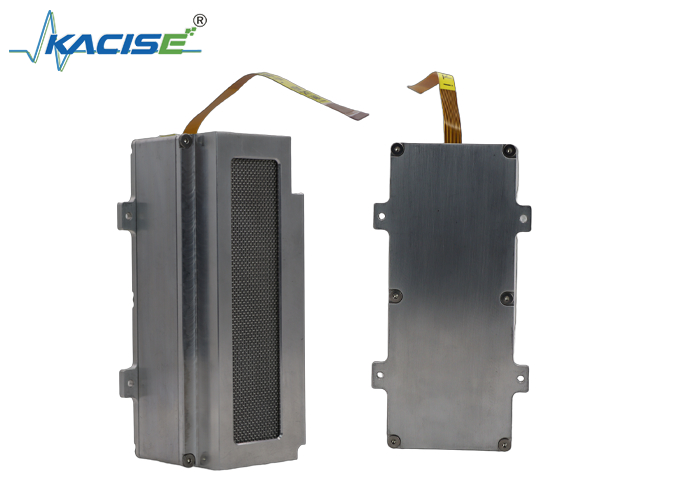

TDLAS200B Series Laser Methane Sensor

Introduction

The TDLAS201 laser gas telemetry module utilizes laser absorption spectroscopy technology. It emits a specific wavelength laser beam to detect target gas presence within the optical path range, accurately measuring gas concentration.

Key Features

High sensitivity with exclusive response to target gas
Built-in reference cell for automatic calibration
Easy integration with digital interface providing direct status and concentration output

Measuring Principle

Molecular absorption spectrum: Methane molecules absorb light at specific wavelengths.

Beer-Lambert's law: Light absorption by methane gas is proportional to gas thickness and concentration.

This technology uses wavelength-specific laser beams to measure methane concentration through light attenuation analysis, with unique methane selectivity. Multiple reflection detection cells enhance sensitivity by allowing repeated laser passes through the measured gas.

Technical Specifications

Parameter	Specification
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃ 5SPS (typical value)
Volume	53ml
Fastest response time	90s
Measurement range	0-5000ppm, 0-10000ppm
Measurement deviation	0-200 ppm: ±2 ppm 200-1000 ppm: ±1% 1000-5000 ppm: ±2% 5000-10000 ppm: ±3%
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 6W (max) Recommended 12V 1A
Dimensions	1155940mm
Gas inlet/outlet port	Pagoda direct M-5AU-4

Detection Module Composition

TDLAS200B (Diffusion) detection module main unit measures 115*59*40mm (excluding cables and gas connectors).

For detailed specifications or custom requirements, please contact our technical team.
