Name: KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KMPW520
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > de sensor van de waterkwaliteit >

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

7 inch touch screen display Water Quality Analyzer

6-channel relay control Water Quality Analyzer

2-channel 4-20mA output Water Quality Sensor

Plaats van herkomst:

Chiaan

Merknaam:

KACISE

Certificering:

Modelnummer:

KMPW520

Neem contact met ons op

Vraag een offerte

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Productgegevens

Werkomstandigheden:

0–60℃, vochtigheid ≤ 90%

Voeding:

AC 220V

Maat:

223 mm × 200 mm × 120 mm

Gewicht:

1.51 kg

Installatiemethode:

Installatie aan de muur

Beschermingsniveau:

IP65

Markeren:

7 inch touch screen display Water Quality Analyzer

6-channel relay control Water Quality Analyzer

2-channel 4-20mA output Water Quality Sensor

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

Vind de beste prijs

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Vind de beste prijs

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

Vind de beste prijs

Wandgemonteerde online optische DO-meter met 0,00-20,00 mg/L meetbereik ±2% F.S. nauwkeurigheid en 0,01 mg/L resolutie

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

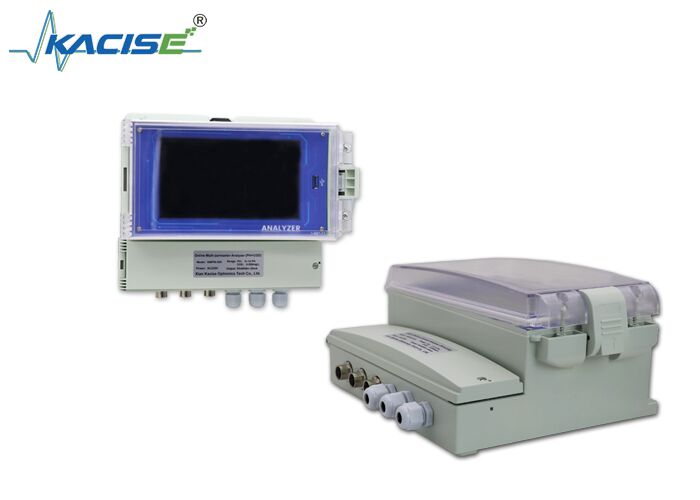

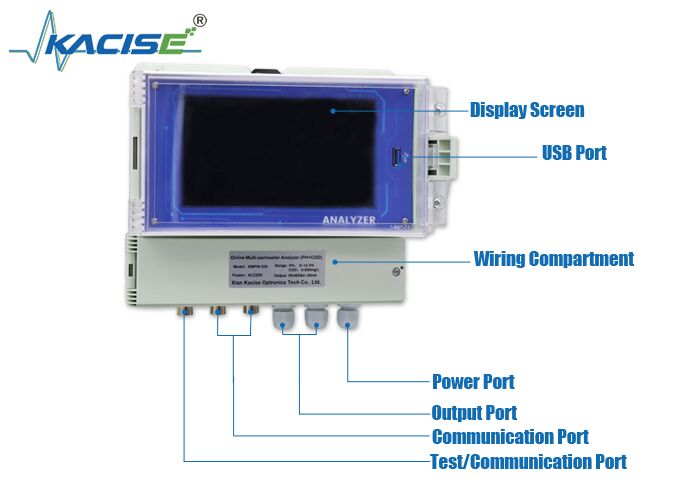

KMPW520 Multi-Parameter Water Quality Analyzer

Product Configuration

Electronic Cabinet x 1
Controller × 1
Sensors for the controller
User manual

Product Introduction

The KMPW520 Multi-Parameter Water Quality Analyzer is a next-generation monitoring system featuring digital sensors for flexible parameter combinations. Designed for industrial applications, it offers comprehensive control capabilities with multiple analog and relay channels, supporting Modbus-RTU protocol for remote data transmission.

Main Features

RTOS system for enhanced performance, stability, and real-time monitoring
7-inch touch screen with English menu and multi-parameter display
6 freely configurable data channels with selectable measurement units
6-channel relay control with high/low alarm settings
2-channel 4-20mA analog output with adjustable ranges
2-channel RS-485 digital interface supporting MODBUS-RTU protocol
Sensor calibration and configuration tools including factory reset
Data logging to TF card (up to 32GB) and USB export capability
Password protection and dual interface themes
Historical data visualization with curves and records

Technical Specifications

Measurement Parameters:

Temperature, PH, ORP, conductivity, TDS, salinity, dissolved oxygen, residual chlorine, dissolved ozone, turbidity, TSS, sludge concentration, hardness, ion concentration, Resistivity, COD, BOD, etc.

Parameter Combinations:

Maximum 6 parameters in free combination (examples: PH+ORP+conductivity+DO+residual chlorine+turbidity)

Specification	Details
Power Supply	AC 220V
Dimensions	223mm × 200mm × 120mm
Weight	1.51kg
Installation	Wall-mounted
Operating Conditions	0-60℃, humidity ≤90%
Protection Level	IP65

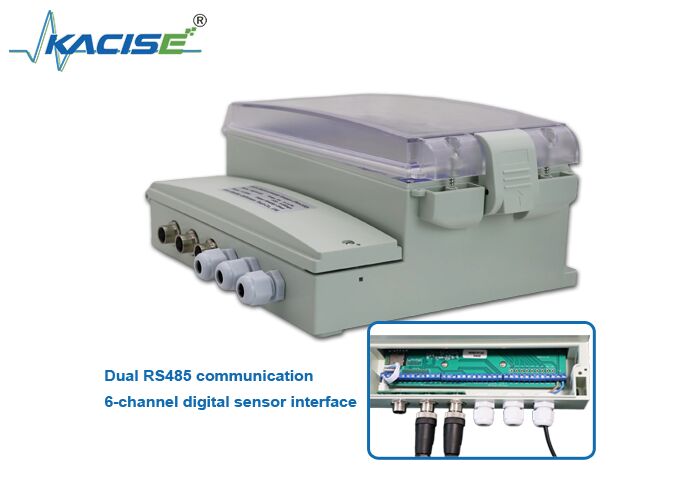

Input Interface	6-channel RS485 with 12V power supply (1A total capacity)
Analog Output	2-channel 4-20mA (750Ω load capacity per channel)
Relay Control	6 channels (3A load capacity per channel)
Digital Output	2-channel RS485 (Modbus-RTU protocol)
Display	7.0-inch LCD (800×480 resolution), capacitive touch
