Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

Plaats van herkomst:

China

Merknaam:

kacise

Certificering:

Modelnummer:

KWS-190

Neem contact met ons op

Vraag een offerte

Digital COD Sensor with 0-500mg/L and 0-1500mg/L Range ±5%FS Accuracy for Water Quality Monitoring

Productgegevens

Gewicht:

1kg (zonder kabel)

Meetbereik:

0-500 mg/l; 0-1500 mg/l

Nauwkeurigheid:

±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)

Oplossing:

0,1 mg/l; 0,1 NTU

Voeding:

12~24VDC

Markeren:

0-500mg/L Range COD Sensor

0-1500mg/L Range Water Quality Sensor

±5%FS Accuracy Digital COD Sensor

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

KWS-790 Digital pH Sensor with 0.00–14.00 pH Measuring Range ±0.02 pH Accuracy and 0–99.9 ℃ Temperature Compensation

Vind de beste prijs

KMPW520 Multi-Parameter Water Quality Analyzer with 7 Inch Touch Screen Display 6-Channel Relay Control and 2-Channel 4-20mA Output

Vind de beste prijs

TDLAS302 Laser Methane Sensor with 0.1 ppm Resolution and 0–1000 ppm Measurement Range for High Accuracy Gas Analysis

Vind de beste prijs

Wandgemonteerde online optische DO-meter met 0,00-20,00 mg/L meetbereik ±2% F.S. nauwkeurigheid en 0,01 mg/L resolutie

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

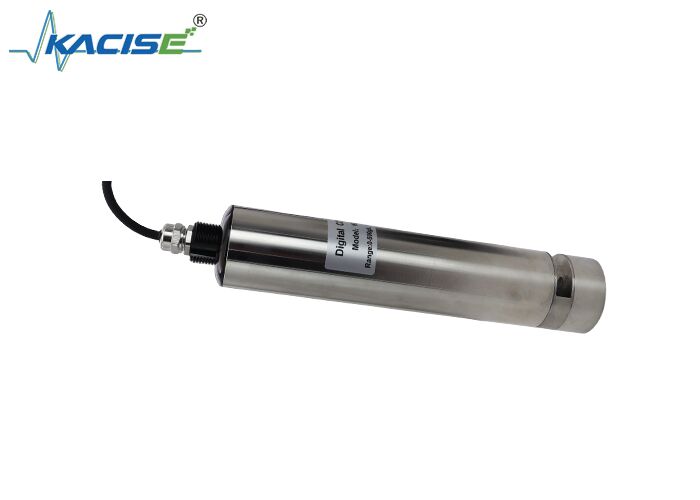

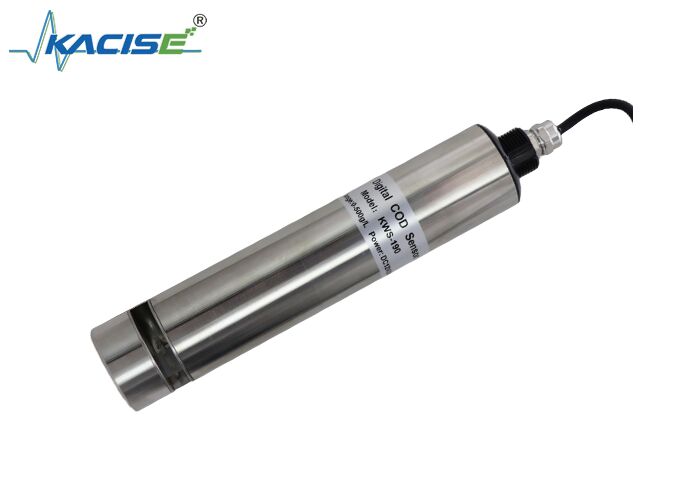

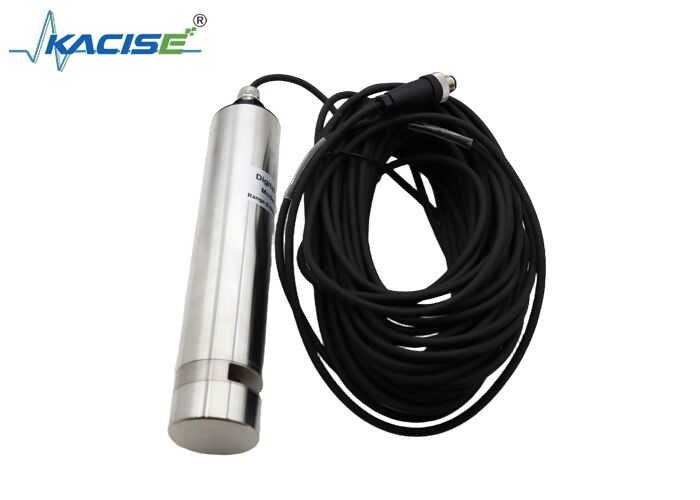

KWS-190 Water Digital COD Sensor

Product Introduction

The UV Method COD Digital Sensor is a digital sensor developed for real-time online monitoring of water COD (Chemical Oxygen Demand). It measures UV light absorption by organic matter in water to determine COD values, with automatic turbidity compensation to eliminate interference from suspended solids.

Main Features

Stainless steel housing with high strength and corrosion resistance
Reagent-free operation for eco-friendly, pollution-free monitoring
Automatic turbidity compensation function
Built-in automatic cleaning to reduce maintenance requirements
Long service life with low operational costs
Direct RS485 interface connectivity for integration with computers, PLCs, and IoT systems
Configurable settings via RS485: slave address, baud rate, calibration, and factory reset
Multi-point calibration support (up to 5 points)

Technical Specifications

Parameter	Specification
Measuring Range	0-500mg/L or 0-1500mg/L (customizable)
Customizable Ranges	COD (0-500mg/L): TOC 0-200mg/L; BOD 0-300mg/L COD (0-1500mg/L): TOC 0-600mg/L; BOD 0-900mg/L
Resolution	0.1mg/L; 0.1NTU
Accuracy	±5%FS (0-500mg/L); ±10%FS (500-1500mg/L)
Turbidity Compensation	0-1000NTU
Interface	RS485 with MODBUS protocol support
Operating Conditions	Ambient Temperature 0-60℃; Water Pressure < 0.1MPa
Power Supply	12-24VDC
Cable	5M standard (customizable length available)
Protection Rating	IP68
Weight	1kg (without cable)

All specifications are subject to change without notice. Contact us for custom configurations or additional technical details.
