Name: FLOWSIC550 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FLOWSIC550
Price: 892.00 USD
Availability: InStock

Thuis > producten > ultrasone stroommeter >

FLOWSIC550 ultrasonic flowmeter

FLOWSIC550 ultrasonic flow meter

ultrasonic flow meter with warranty

industrial ultrasonic flow meter

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

FLOWSIC550

Neem contact met ons op

Vraag een offerte

Productgegevens

Het meten van principe:

Ultrasone transittijdverschilmeting

Gemeten variabelen:

Volume ac, volumestroom ac, gassnelheid, volume sc (*), volumestroom onder sc (*)

Meetmedium:

Aardgas (droog, geurig), lucht

Herhaalbaarheid:

≤ 0.1%

Nauwkeurigheid:

Qmin tot Qmax ≤ ± 1 %; Nauwkeurigheidsklasse 1; typische foutlimieten

Markeren:

FLOWSIC550 ultrasonic flow meter

ultrasonic flow meter with warranty

industrial ultrasonic flow meter

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Prosonic Flow E 100 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow G 300 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow G 500 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow I 400 ultrasonic flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

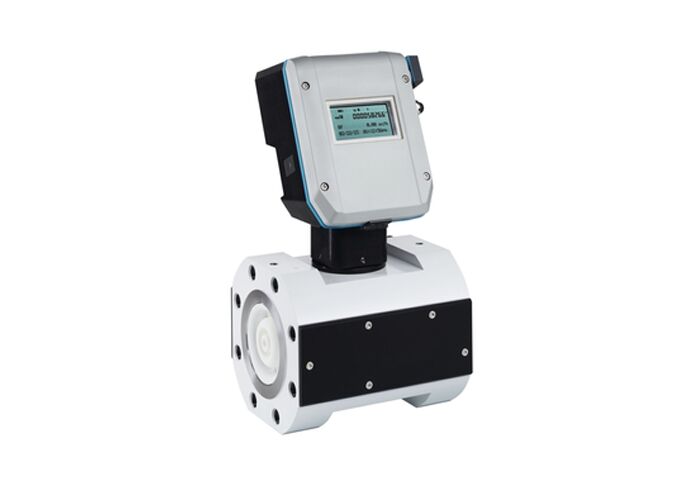

FLOWSIC550 Ultrasonic Flowmeter

State-of-the-art technology for maximum measurement accuracy: The FLOWSIC550 ultrasonic compact gas flowmeter ensures highly accurate billing of low volume flows in high-pressure networks - a perfect complement to the FLOWSIC500.

Field of Application

This overload-proof, accurate flowmeter is monitored by an intelligent diagnostics system and can be easily integrated into existing measuring stations. When used in transfer and measuring stations, FLOWSIC550 ensures a continuous and blockage-free gas supply.

Gas measurement of low volume applications at high pressures
Custody transfer: gas distribution, storage, and transmission systems
Town border stations and city gate stations

Key Benefits

Ultimate measurement certainty and safety of continuous gas supply
Simple installation, replacement of turbine gas meters
Reduction of installation costs due to integrated volume correction
Easy commissioning and data reading via FLOWgate™ (PC and App)
Minimal operating costs due to being nearly maintenance-free
Reliable even when the gas flow fluctuates (on/off applications)
Self-sufficient operation possible

Device Properties

Diagnostics and permanent operational self-monitoring
Durable and reliable without moving parts
Compact meter installations
Integrated volume correction
Battery or intrinsically safe power supply
Bluetooth Low Energy (BLE)

Technical Specifications

Measuring Principle	Ultrasonic transit time difference measurement
Measured Variables	Volume a.c., volumetric flow a.c., gas velocity, volume s.c. (), volume flow under s.c. () () additional function included with integrated volume correction*
Measuring Medium	Natural gas (dry, odorized), air
Repeatability	≤ 0.1 %
Accuracy	Qmin up to Qmax ≤ ± 1 %; Accuracy class 1; typical error limits Qmin up to 0.1 Qmax ≤ ± 2 %; Accuracy class 1; maximum allowed error limits 0.1 Qmax up to Qmax ≤ ± 1 %; Accuracy class 1; maximum allowed error limits After high pressure flow calibration: ±0.2 % at test pressure; otherwise ±0.5 %
Medium Temperature Range	-40 °C ... +70 °C
Nominal Pipe Size	DN 50 (2) … DN 150 (6)

Operating Pressure Ranges

ANSI300 (ASME B16.5)	≤ 48.7 bar (g); for -40 ... +70°C
ANSI600 (ASME B16.5)	≤ 97.4 bar (g); for -40 ... +70°C
PN40 (EN 1092-1)	≤ 40 bar (g); for -40 ... +70°C
PN63 (EN 1092-1)	≤ 63 bar (g); for -40 ... +70°C

Metrological Approvals and Certificates

MID: 2014/32/EU
OIML R 137-1&2:2012
EN 12405: 2010 (for integrated volume correction)
AGA 9, 2022

Hazardous Area Approvals

IECEx: Ex ia [ia Ga] T4 IIB Gb
ATEX: II 2 (1)G Ex ia [ia Ga] T4 IIB Gb
NEC/CEC (US/CA): Class I Division 1, Groups C, D T4 Ex ia [ia Ga] IIB T4 Gb
Class I, Zone 1 AEx ia [ia Ga] IIB T4 Gb

Digital Outputs

2x Pulse and Status (HF with fmax = 2kHz, LF with fmax = 10 Hz)
2x RS485, external powered

Encoder Options

HF pulses + malfunction, electrically isolated (fmax = 2 kHz)
Encoder + LF pulses, electrically isolated (fmax = 100 Hz)
Encoder + HF pulses, not electrically isolated (fmax = 2 kHz)
2x pulses, HF and LF, electrically isolated (fmax = 2 kHz / 100 Hz)

Digital Communication

Modbus RTU
Modbus ASCII
