Name: FLOWSIC900 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: FLOWSIC900
Price: 892.00 USD
Availability: InStock

Thuis > producten > ultrasone stroommeter >

FLOWSIC900 ultrasonic flowmeter

FLOWSIC900 ultrasonic flow meter

ultrasonic flow meter with warranty

FLOWSIC900 flow measurement device

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

FLOWSIC900

Neem contact met ons op

Vraag een offerte

Productgegevens

Het meten van principe:

Ultrasone transittijdverschilmeting

Gemeten variabelen:

Volume ac, luchtvolume ac, vloeistofsnelheid, geluidssnelheid

Meetmedium:

LNG (vloeibaar aardgas)

Herhaalbaarheid:

≤ ± 0,05 % van de gemeten waarde

Nauwkeurigheid:

Typische foutlimieten Qmin ... Qmax

Bedrijfsdrukbereik:

0 bar (g… 275 psi(g)

Markeren:

FLOWSIC900 ultrasonic flow meter

ultrasonic flow meter with warranty

FLOWSIC900 flow measurement device

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Prosonic Flow E 100 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow G 300 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow G 500 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow I 400 ultrasonic flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

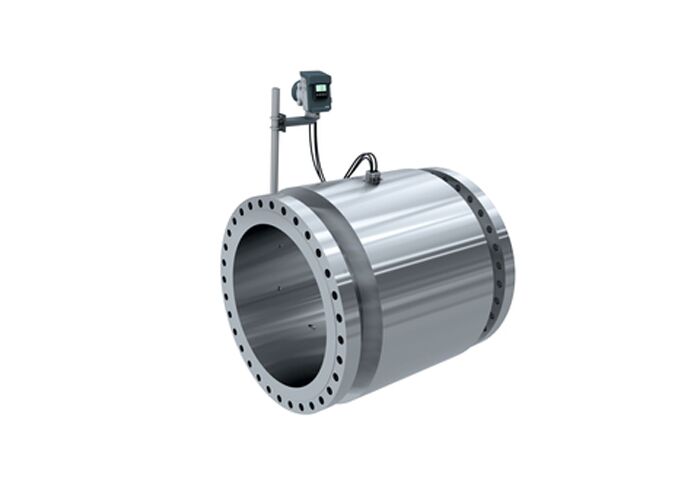

FLOWSIC900 Ultrasonic Flowmeter

The FLOWSIC900 represents our extensive experience in natural gas measurement—a flowmeter specifically engineered for the LNG industry. It delivers custody transfer accuracy for volume flow measurement and meets the highest metrological standards.

Field of Application

FLOWSIC900, together with FLOWSIC600-XT and FLOWSIC100 Flare-XT, provides comprehensive high-end measurement solutions for LNG plants, enhancing measurement performance and reliability.

Custody transfer measurement of LNG
Onshore and offshore applications
Liquefaction, transport, and storage of LNG

Device Properties

Intrinsically safe and reliable ultrasonic transducers
Conforms to OIML R117 Class 0.3 and API MPMS Chapter 5.8
Real-time measurement and diagnostics
Full bore design eliminates pressure drop and flow conditioner requirements
Factory thermal pre-insulation
Remote Signal Processing Unit

Key Benefits

Low measurement uncertainty at custody transfer point reduces financial risks during LNG transactions

Increased transparency through dynamic real-time measurement and diagnostics

Operational expenditure savings from reduced boil-off gas losses and efficient LNG transfer

Capital expenditure savings through simplified meter integration and installation

Easy commissioning and regular checks with remote Signal Processing Unit

Technical Specifications

Measuring Principle	Ultrasonic transit time difference measurement
Measured Variables	Volume a.c., volumetric flow a.c., fluid velocity, speed of sound
Measuring Medium	LNG (Liquefied Natural Gas)
Repeatability	≤ ±0.05% of measured value
Accuracy	≤ ±0.2% of reading (Qmin...Qmax) after flow calibration and adjustment
Operating Pressure Range	0 bar(g)...19 bar(g) / 0 psi(g)...275 psi(g)
Nominal Pipe Size	8″...36″ / DN200...DN900, Schedule 40S/STD per ASME B36.19/B36.10 (others on request)

Metrological Approvals and Certificates

Metrological: OIML R117 Class 0.3
Explosion Protection: IECEx: IEC 60079, cCSA: CAN/CSA C22.2 No. 60079, CSAus: UL 60079, UL 61010, UL 1203, FM3600
Pressure Rating: ASME: B16.5/B16.47, B36.19/B36.10
Other: API MPMS Chapter 5.8

Hazardous Area Approvals

IECEx: Ex db ia [ia Ga] IIA T4 Gb
NEC/CEC (US/CA): Class I, Division 2, Group D T4; Ex db ia [ia Ga] IIA T4 Gb; Class I, Zone 1, AEx db ia [ia Ga] IIA T4 Gb; Class I, Division 1, Group D T4

Digital Outputs & Communication

2 Digital output/Frequency output (others on request)
Modbus RS-485 (2x), Modbus RTU/ASCII
Bluetooth, USB
