Name: Proline Promass P 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass P300
Price: 2,540.00 USD
Availability: InStock

Thuis > producten > Elektromagnetische Stroommeter >

Proline Promass P 300 Coriolis flowmeter

Proline Promass P 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

Proline Promass P300

Neem contact met ons op

Vraag een offerte

Proline Promass P 300 Coriolis flowmeter

Productgegevens

Meetbereik:

0 tot 70 000 kg/uur (0 tot 2570 lb/min)

Max. verwerkingsdruk:

PN 40, klasse 150, 20K

Gemiddelde temperatuurbereik:

Standaard: –50 tot +150 °C (–58 tot +302 °F)

Het Materiaal van de sensorhuisvesting:

1.4301 (304), corrosiebestendig

Het materiaal van de zenderhuisvesting:

AlSi10Mg, gecoat; roestvrij staal voor hygiënisch zenderontwerp

Markeren:

Proline Promass P 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Promass S 300 Coriolis flowmeter

Vind de beste prijs

Proline Promass P 500 Coriolis flowmeter

Vind de beste prijs

Proline Promass Q 300 Coriolis flowmeter

Vind de beste prijs

Proline t-mass F 500 thermal mass flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

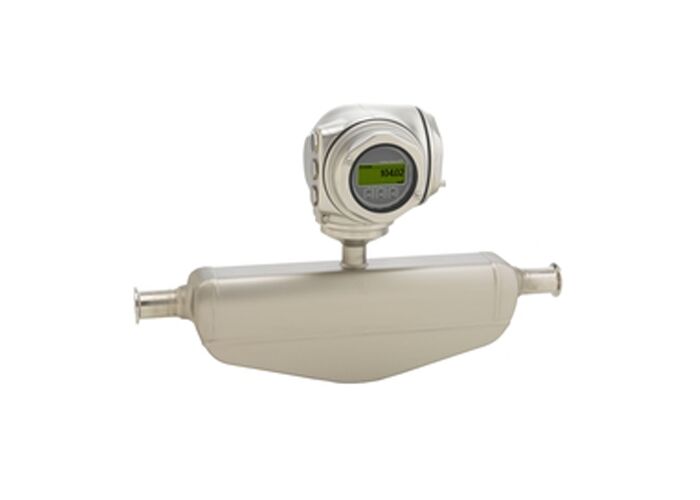

Proline Promass P 300 Coriolis Flowmeter

Specialist for life sciences with a compact, easily accessible transmitter dedicated to applications under sterile conditions.

Field of Application

Promass P is the specialist for sterile processes in the life sciences industry, dedicated to biotech applications requiring highest compliance with guidelines and regulations. With its compact transmitter, it offers high flexibility in operation and system integration.

Key Benefits

Highest process quality - fully compliant to industry requirements
Fewer process measuring points - multivariable measurement (flow, density, temperature)
Space-saving installation - no inlet/outlet run requirements
Full access to process and diagnostic information
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Coriolis

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Max. Measurement Error

Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Nominal Diameter Range

DN 8 to 50 (⅜ to 2")

Max. Process Pressure

PN 40, Class 150, 20K

Medium Temperature

Standard: -50 to +150 °C (-58 to +302 °F)
Option: -50 to +205 °C (-58 to +401 °F)

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)
Option: -50 to +60 °C (-58 to +140 °F)

Device Properties

ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Inputs & Outputs

Outputs: 3 outputs including 4-20 mA HART, WirelessHART, pulse/frequency/switch output, relay output
Inputs: Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)

Approvals & Certifications

ATEX IECEx cCSAus NEPSI INMETRO EAC UK Ex KC CE C-tick PED CRN 3-A EHEDG ASME BPE ISPE cGMP
