Name: Proline Prosonic Flow I 400 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prosonische Flow I 400
Price: 892.00 USD
Availability: InStock

Thuis > producten > ultrasone stroommeter >

Proline Prosonic Flow I 400 ultrasonic flowmeter

Proline Prosonic ultrasonic flowmeter

ultrasonic flow meter with warranty

Prosonic Flow I 400 flowmeter

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

Proline Prosonische Flow I 400

Neem contact met ons op

Vraag een offerte

Proline Prosonic Flow I 400 ultrasonic flowmeter

Productgegevens

Invoer:

Statusinput

Digitale Mededeling:

In een deksel

Voeding:

AC 100 tot 240 V / AC/DC 24 V

Goedkeuringen:

cCSAus

Overige goedkeuringen en certificaten:

Overige goedkeuringen en certificaten

Productveiligheid:

CE, C-tick-markering, EAC-markering

Markeren:

Proline Prosonic ultrasonic flowmeter

ultrasonic flow meter with warranty

Prosonic Flow I 400 flowmeter

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Prosonic Flow E 100 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow G 300 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow G 500 ultrasonic flowmeter

Vind de beste prijs

Proline Prosonic Flow I 400 ultrasonic flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

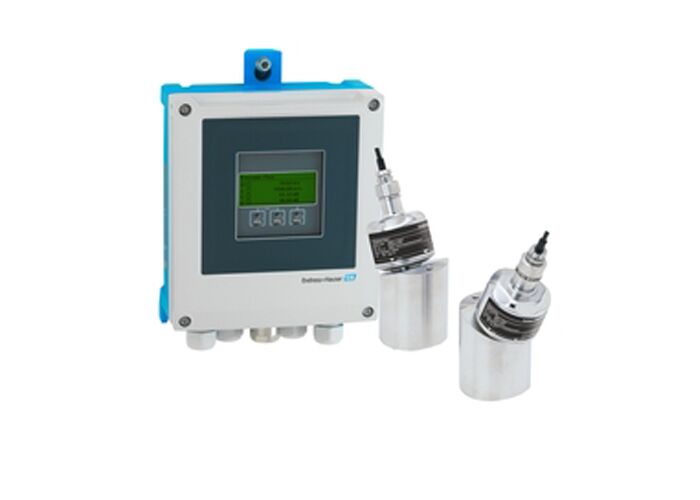

Proline Prosonic Flow I 400 Ultrasonic Flowmeter

Advanced insertion ultrasonic flowmeter combining sensor technology with Proline 400 transmitters for precise flow measurement in large pipelines.

Key Features

Heartbeat Technology for safe process monitoring
Web server access for easy installation and operation
Bidirectional flow measurement of water and wastewater
Measuring principle independent of density and conductivity
Supports two parallel measurement paths

Technical Specifications

Measuring Range: 0 to 15 m/s (0 to 50 ft/s)

Max. Measurement Error: ±2% o.r. above DN200

Medium Temperature: -40 to +80 °C (-40 to +176 °F)

Ambient Temperature: -20 to 60°C (-4 to 140°F)

Nominal Diameter Range: DN200 to 4000 (8 to 160")

Measured Variables: Volume flow, Flow velocity, Sound velocity

Construction & Materials

Wetted Materials

Sensor holder: 1.4301 (304), 1.4404 (316L)
Sensor housing: 1.4301 (304), 1.4404 (316L)

Transmitter Housing

Polycarbonate or AlSi10Mg (coated)

Electrical & Communication

Power Supply: AC 100 to 240 V / AC/DC 24 V

Digital Communication: HART

Outputs: 3 outputs including 4-20 mA HART and pulse/frequency/switch outputs

Inputs: Status input

Protection & Approvals

Degree of Protection: IP66/67, Type 4X enclosure (IP68 optional)

Product Safety: CE, C-tick marking, EAC-marking

Approvals: cCSAus

Metrological: ISO/IEC 17025 accredited verification

Operation & Display

4-line backlit display with touch control (operation from outside)

Configuration via local display, web browser and operating tools
