Name: Proline t-mass A 150 thermal mass flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline t-massa A 150
Price: 2,540.00 USD
Availability: InStock

Thuis > producten > Elektromagnetische Stroommeter >

Proline t-mass A 150 thermal mass flowmeter

Proline t-mass A 150 flowmeter

thermal mass flowmeter with warranty

electromagnetic flow meter for liquids

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

Proline t-massa A 150

Neem contact met ons op

Vraag een offerte

Proline t-mass A 150 thermal mass flowmeter

Productgegevens

Het materiaal van de zenderhuisvesting:

Met een laag bedekte AlSi10Mg,

Mate van bescherming:

IP66/67, type4x bijlage

Vertoning/Verrichting:

4-regelig display met drukknoppen

Outputs:

4‐20 mA HART (actief)

Digitale Mededeling:

In een deksel

Markeren:

Proline t-mass A 150 flowmeter

thermal mass flowmeter with warranty

electromagnetic flow meter for liquids

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Promass S 300 Coriolis flowmeter

Vind de beste prijs

Proline Promass P 500 Coriolis flowmeter

Vind de beste prijs

Proline Promass Q 300 Coriolis flowmeter

Vind de beste prijs

Proline t-mass F 500 thermal mass flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

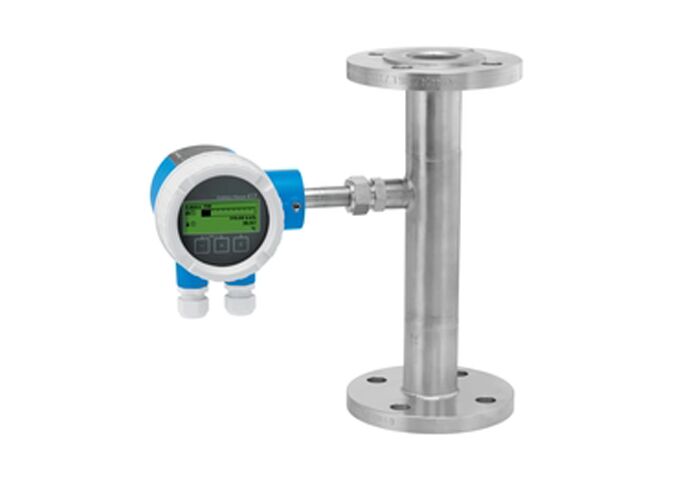

Proline t-mass A 150 Thermal Mass Flowmeter

The flowmeter for cost-effective measurement and easy monitoring of utility gases. Suitable for air, nitrogen, carbon dioxide and argon in small line sizes.

Field of Application

The t-mass A 150 inline device is specially designed for cost-effective measurement of utility gases, particularly compressed air. This trending device is ideal for sub-metering applications with 4-wire technology contained within a rugged compact aluminum housing. Available with display or as a blind version.

Key Benefits

Suitable for air, nitrogen, carbon dioxide and argon in small line sizes
Optimal process monitoring - easy measurement even at low pressures and flow velocities
Cost-effective measurement - easy installation, negligible pressure loss and maintenance-free
Reliable flow trending - multivariable measurement
Fast and efficient commissioning - guided operating menus
High plant availability - self-diagnostics and error monitoring
Automatic recovery of data for servicing

Technical Specifications

Measuring Principle	Thermal
Nominal Diameter Range	DN 15 to 50 (½ to 2")
Measured Variables	Mass flow, temperature, corrected volume flow, FAD volume flow
Max. Measurement Error	3% o.r. 4% o.r. 5% o.f.s. (depending on chosen calibration flow option)
Measuring Range (for air)	0.5 to 910 kg/h (1.1 to 2002 lb/h) 0.5 to 1365 kg/h (1.1 to 3003 lb/h) (depending on chosen calibration flow option)
Max. Process Pressure	PN 40, Class 300
Medium Temperature Range	-40 to +100 °C (-40 to +212 °F)
Ambient Temperature Range	-40 to +60 °C (-40 to +140 °F)

Device Properties

Wetted Materials	Transducer: 1.4404 (316L) Insertion tube: 1.4404 (316L) Measuring tube: 1.4404 (316L); 1.4435 (316L) Connection: 1.4404 (F316/F316L); 1.4404 (316L); 1.4435 (316L)
Transmitter Housing Material	AlSi10Mg, coated
Degree of Protection	IP66/67, type 4X enclosure
Display/Operation	4-line display with push buttons Configuration via local display and operating tools possible
Outputs	4-20 mA HART (active) Pulse/frequency/switch output (passive)
Inputs	Status input
Digital Communication	HART
Power Supply	DC 18 to 30 V

Approvals and Certifications

Hazardous Area: ATEX, IECEx, cCSAus
Metrological: Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR
Pressure: PED, CRN
