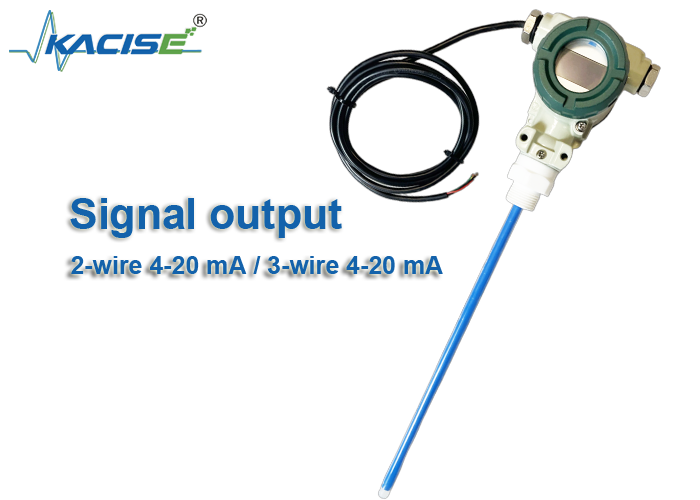

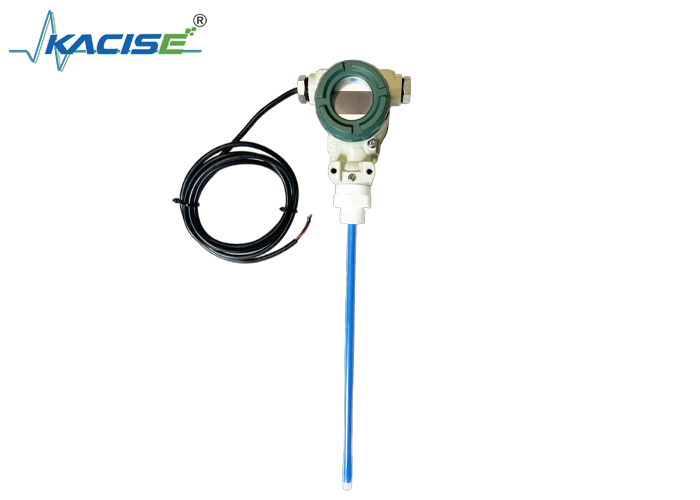

Name: KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV654-B
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > de sensor van de waterkwaliteit >

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Plaats van herkomst:

China

Merknaam:

KACISE

Certificering:

Modelnummer:

KSLV654-B

Neem contact met ons op

Vraag een offerte

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Productgegevens

Bestellengte L:

50-2000 mm

Montagemethode:

Met schroefdraad M27*2 of M20*1,5

Temperatuurafwijking:

≤0,02% FS/℃ (binnen -40 tot 80℃)

Beschermingsniveau:

IP65

Sondemateriaal:

PFA

Diameter sonde:

∅10mm

Materiaal bevestigingsschroef:

PTFE

Bestellengte:

50-2000 mm

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

KSLV651-A Compact Intelligente Niveausensor met IP68 Bescherming FEP Sondemateriaal en Lange-termijn Stabiliteit ≤0,1% VS/jaar

Vind de beste prijs

KWL800 radarwaterstandsensor met 80 GHz meetfrequentie 20 m meetbereik en IP68-beschermingscategorie

Vind de beste prijs

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output

Vind de beste prijs

KSLV654-A Corrosion-Resistant Industrial Level Sensor with IP68 Protection and Multiple Signal Outputs

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

KSLV654-B Industrial Standard Capacitive Level Sensor

The KSLV654-B is a robust industrial capacitive level sensor designed for reliable and continuous liquid level measurement in standard industrial environments. Featuring a high-performance PFA probe and PTFE housing and screws, the sensor provides excellent corrosion resistance and durability, making it suitable for chemical, water treatment, and general industrial applications.

With support for 2-wire or 3-wire 4–20 mA output, the KSLV654-B can be easily integrated into PLC, DCS, or other automation systems, providing precise and stable level monitoring. Its wide operating temperature range, high accuracy, and compact design make it an ideal choice for versatile industrial liquid level measurement.

KSLV654-B Industrial Capacitive Level Sensor with PFA Probe, IP65 Protection, and 4-20 mA Output 0

Product Features

High-Precision Measurement
Advanced capacitive measurement technology delivers accuracy up to Class 0.5, with absolute error as low as ±3 mm, ensuring reliable and precise liquid level readings.

Wide Temperature Adaptability

Measurement temperature: -40 to 120℃
Probe temperature resistance: -60 to 150℃
Suitable for both low- and high-temperature industrial conditions.

Corrosion-Resistant Design

Probe material: PFA
Housing and fixing screws: PTFE
Provides excellent resistance to chemical corrosion and long-term durability.

Multiple Signal Output Options
Supports 2-wire or 3-wire 4–20 mA output, allowing flexible integration with industrial control systems.

High Stability and Low Drift

Long-term stability: ≤0.1% FS/year
Temperature drift: ≤0.02% FS/℃
Ensures consistent and reliable performance over time.

Flexible Installation

Threaded mounting: M27*2 or M20*1.5
Suitable for various tank types and installation environments.

Protection Against Harsh Conditions

Protection level: IP65, suitable for industrial environments with dust and water exposure.

Multiple Measuring Length Options
Measuring length: 50–2000 mm, meeting different container and tank requirements.

Typical Applications

Chemical Processing Industry
Water Treatment Systems
Storage Tank Level Monitoring
Industrial Automation Equipment
Food and Beverage Industry
Pharmaceutical Industry

Technical Parameters

Technical Parameter	Description
Order Length L	50-2000 mm
Accuracy	Absolute error ±3 mm (L ≤ 300 mm), Accuracy class 1.0 (300 < L ≤ 700 mm), Accuracy class 0.5 (700 < L ≤ 2000 mm)
Measurement Temperature	-40 to 120℃
Probe Temperature Resistance	-60 to 150℃
Signal Type	2-wire 4-20 mA / 3-wire 4-20 mA
Supply Voltage	18-36 Vdc, Typical 24 Vdc
Pressure Range	-0.1 to 0.6 MPa
Long-term Stability	≤0.1% FS / year
Temperature Drift	≤0.02% FS/℃ (within -40 to 80℃)
Protection Level	IP65
Probe Material	PFA
Probe Diameter	∅10 mm
Fixing Screw Material	PTFE
Mounting Method	Threaded M272 or M201.5
Dimensional Tolerance	±3 mm
