Productdetails:
Plaats van herkomst: China (vasteland)
Merknaam: Kacise
Certificering: certificate of explosion-proof, CE
Modelnummer: Kua-40-12pb-F
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 Stuk / Stukken
Verpakking Details: elke eenheid heeft individuele doos en alle vakjes worden ingepakt in standaardpakketten of beschikb
Levertijd: 9 werkdagen
Betalingscondities: Bevestigingsbrief, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen: 3000 Stuk/stuks per maand
Contact
Gedetailleerde productomschrijving
model: Kua-40-12pb-F frequentie: 40KHz±5%
reeks: 0.5~12m Minimumimpedantie: 390Ω±20%
Capacitieve weerstand: 5200pF±20% @1KHz gevoeligheid: zendt voltage uit: 700Vpp, afstand 0.6m, echoomvang 450mV
Het werk Voltage: Piekpunt voltage<1500VPP Het werk temperatuur: -40~+80℃
Druk: ≤3kg of 0.3MPa
Hoog licht:

Waterdicht ultrasone Sensor

,

De ultrasone Sensor van het Brandstofniveau

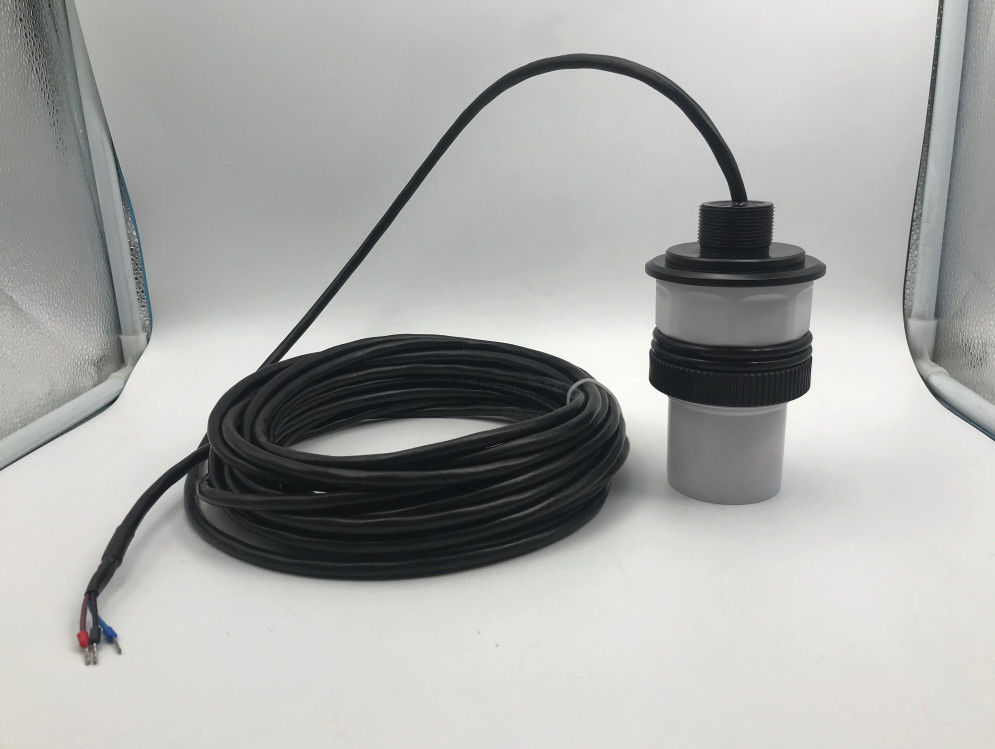

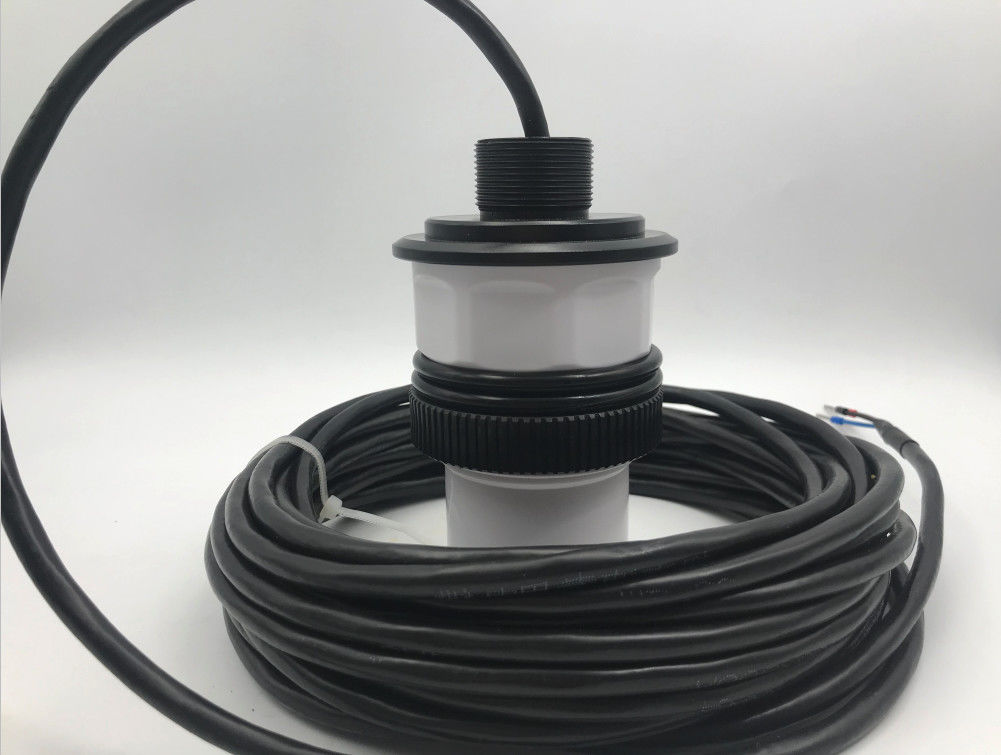

12m Anticorrosief ver Omvormer Modelpb (: Kua-40-12pb-F)




Punt Parameters
Naam 12m Anticorrosief Omvormer Modelpb
Model Kua-40-12pb-F
Frequentie 40KHz±5%
Waaier 0.5~12m
Minimum
impedantie
390Ω±20%
Capacitieve weerstand 5200pF±20% @1KHz
Gevoeligheid zendt voltage uit: 700Vpp, afstand 0.6m,
echoomvang 450mV
Het werk voltage Piekpunt voltage<1500VPP
Het werken
temperatuur
-40~+80℃
Druk ≤3kg of 0.3MPa
Hoek (Bundeldoorsnede) halve kracht angle@-3dB:10 °±2,
Scherptehoek: 23°±4
Huisvestingsmateriaal POM, PVDF
Gebruik ultrasone niveausensor, monitor,
antibotsings, veiligheid
IP rang IP68
Gewicht 950g±5% (kabellengte: 10m)



12m het Anticorrosieve Industriële Ultrasone Certificaat van Sensor Explosiebestendige Ce 0





12m het Anticorrosieve Industriële Ultrasone Certificaat van Sensor Explosiebestendige Ce 1

12m het Anticorrosieve Industriële Ultrasone Certificaat van Sensor Explosiebestendige Ce 2





Bedrijfsinformatie



Xi'an Kacise is gekwalificeerd met ISO 9001-2008, GJB 9001B-2009, Ce, de intrinsieke explosiebestendige certificaten van de veiligheids explosiebestendige en geïsoleerde veiligheid, enz. die garanderen dat onze producten aan internationale normen voldoen.

Wij hebben ons in productiedruk, niveau en stroom meetinstrumenten en verwante producten 10 jaar gespecialiseerd.

12m het Anticorrosieve Industriële Ultrasone Certificaat van Sensor Explosiebestendige Ce 3
