Name: Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWD120
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > de sensor van de waterkwaliteit >

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Plaats van herkomst:

CHINA

Merknaam:

kacise

Certificering:

Modelnummer:

KWD120

Neem contact met ons op

Vraag een offerte

Split-type Ultrasonic Sludge Level Meter with 1%~3% Accuracy 5mm Resolution and 4~20mA Output

Productgegevens

Meetnauwkeurigheid:

1% ~ 3%

Oplossing:

5 mm of 0,5% (wat groter is)

Weergave:

Chinese LCD-display

Analoge uitgang:

4 ~ 20 mA/510Ω lading

Relaisuitgang:

2-weg AC 250V/5A of DC 30V/5A, programmeerbare status

Markeren:

1%~3% Accuracy Ultrasonic Sludge Level Meter

5mm Resolution Sludge Level Sensor

4~20mA Output Ultrasonic Level Meter

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Vind de beste prijs

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Vind de beste prijs

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Vind de beste prijs

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

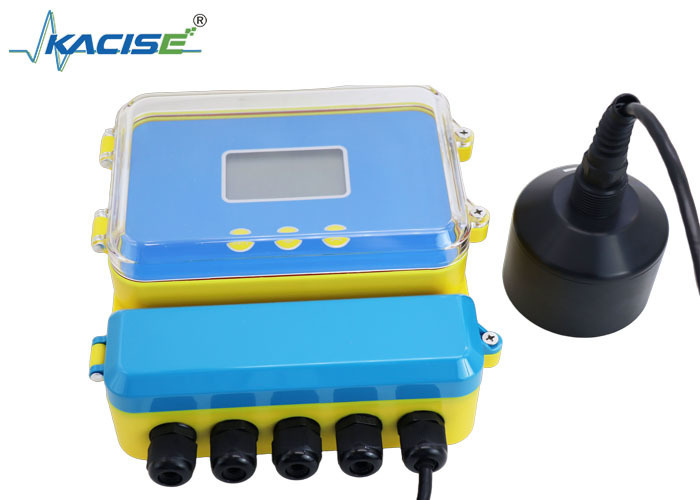

KWD120 Split-type Ultrasonic Sludge Level Meter

Introduction

The KWD120 Ultrasonic Depth Sounder is a reliable, cost-effective level measurement instrument designed for sludge and liquid applications. This contact-type device measures underwater distance through liquid propagation, offering easy installation and maintenance.

Technical Parameters

Function	Split type
Range	Standard measuring ranges: 5m, 10m, 15m, 20m. Customizable up to 70m or special ranges
Measurement Accuracy	1%-3%
Resolution	5mm or 0.5% (whichever is larger)
Display	Chinese LCD display
Analog Output	4-20mA/510Ω load
Relay Output	2-way AC 250V/5A or DC 30V/5A, programmable status
Power Supply	Standard 220V AC ±15% 50Hz, Optional 24VDC 120mA, Custom 12VDC or battery power
Ambient Temperature	Display: -20°C to +60°C, Probe: -20°C to +80°C
Communication	Optional 485, 232 communication (manufacturer protocol)
Protection Level	Display: IP65, Probe: IP68
Probe Cable	Standard 10m, customizable up to 100m (without electromagnetic interference)
Power Consumption (24V)	mA output only: 1.5W (standard) 485 output only: 0.9W (optional) Both 485 and mA: 1.6W (optional) Add two relays: +0.8W (optional)
Power Consumption (220V)	220VAC split instrument: 5W

Dimensions

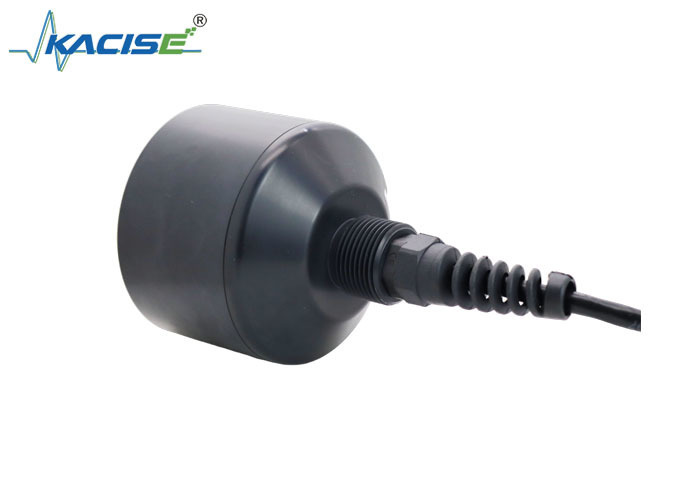

Probe Dimensions

50Khz and 200Khz dual frequency

300Khz

400Khz

500Khz

650Khz
