Name: SC210G Conductivity Sensor with Cell Constant 0.05 cm-1 and 5 cm-1 for Measuring Range 0-0.5 to 0-200 μS/cm
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SC210G
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > de sensor van de waterkwaliteit >

SC210G Conductivity Sensor with Cell Constant 0.05 cm-1 and 5 cm-1 for Measuring Range 0-0.5 to 0-200 μS/cm

Cell Constant 0.05 cm-1 Conductivity Sensor

Cell Constant 5 cm-1 Conductivity Sensor

Measuring Range 0-0.5 to 0-200 μS/cm SC210G

Merknaam:

Yokogawa

Modelnummer:

SC210G

Neem contact met ons op

Vraag een offerte

SC210G Conductivity Sensor with Cell Constant 0.05 cm-1 and 5 cm-1 for Measuring Range 0-0.5 to 0-200 μS/cm

Productgegevens

Object of Measurement:

Geleidbaarheid van vloeistoffen of oplossingen

Het meten van principe:

Twee-elektrode systeem

Celconstante:

0,05 cm-1, 5 cm-1

Meetbereik:

0-0.5 tot 0-200 μs/cm (celconstante: 0,05 cm-1) 0-200 μs/cm tot 0-20 ms/cm (celconstante: 5 cm-1)

Temperatuurbereik:

0 tot 105 graden C (Kamermateriaal: SCS14) 0 tot 100 graden C (Kamermateriaal: polypropyleen)

Markeren:

Cell Constant 0.05 cm-1 Conductivity Sensor

Cell Constant 5 cm-1 Conductivity Sensor

Measuring Range 0-0.5 to 0-200 μS/cm SC210G

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 werkdagen

Betalingscondities

MoneyGram, Western Union, T/T, D/P, D/A, L/C

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

Vind de beste prijs

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

Vind de beste prijs

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

Vind de beste prijs

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

Vind de beste prijs

Neem contact met ons op

86--17719566736

Contact opnemen

Productbeschrijving

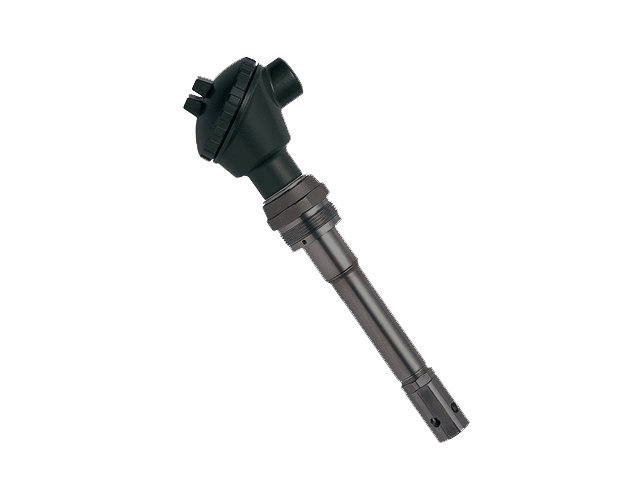

Conductivity Sensor SC210G

Yokogawa has been supplying superior on-line analyzers for monitoring or controlling the conductivity of liquids or solutions.

Now, Yokogawa provides the SC450G four-wire conductivity/resistivity converter, the SC202G and SC202S two-wire conductivity/resistivity transmitters, and the SC100 panel mount conductivity converter. Yokogawa also provides many kinds of sensors for accurately measuring liquid conductivity when using converters/transmitters.

The combination of Yokogawa's converters/transmitters and sensors meets the demanding ultrapure water requirements of the growing semiconductor and pharmaceutical markets in addition to the traditional water quality measurement requirements of standard power plant and chemical applications.

The SC210G conductivity sensor is widely used in various water and manufacturing process applications. A wide variety of mountings are available including screw-in type, flange type, flow-through type, and screw-in type with gate valve.

Specifications

Object of measurement	Conductivity of liquids or solutions
Measuring principle	Two-electrode system
Cell constant	0.05 cm^-1, 5 cm^-1
Measuring range	0-0.5 to 0-200 μS/cm (Cell constant: 0.05 cm^-1) 0-200 μS/cm to 0-20 mS/cm (Cell constant: 5 cm^-1)
Temperature Range	0 to 105°C (chamber material: SCS14) 0 to 100°C (chamber material: Polypropylene)
Pressure range	0 to 1 MPa (chamber material: SCS14) 0 to 500 kPa (chamber material: Polypropylene)
Measuring solution condition	Flow rate: less than 20 l/min is recommended for flow-through type. Air bubbles should not be mixed in the sample solutions to obtain correct measured values.
Temperature sensor	PB36 NTC
Construction	JIS C0920 watertight (equivalent to NEMA4)
Process connection	Screw-in, Flange, Flow-through, with gate valve
