Name: Proline Prowirl R 200 vortex flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prowirl R 200
Price: 2,540.00 USD
Availability: InStock

Thuis > producten > Elektromagnetische Stroommeter >

Proline Prowirl R 200 vortex flowmeter

Proline Prowirl R 200 flowmeter

vortex flowmeter with warranty

electromagnetic vortex flow meter

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

Proline Prowirl R 200

Neem contact met ons op

Vraag een offerte

Productgegevens

Outputs:

4‐20 mA HART (passief)

Invoer:

4‐20 mA (passief)

Digitale Mededeling:

HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, Modbus TCP over Ethernet-APL

Goedkeuringen voor gevaarlijke gebieden:

ATEX, IECEx, cCSAus, JPN, EAC, VK Ex

Productveiligheid:

CE, C-tick, EAC

Functionele veiligheid:

Functionele veiligheid volgens IEC 61508, toepasbaar in veiligheidsrelevante toepassingen volgens IE

Markeren:

Proline Prowirl R 200 flowmeter

vortex flowmeter with warranty

electromagnetic vortex flow meter

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Promass S 300 Coriolis flowmeter

Vind de beste prijs

Proline Promass P 500 Coriolis flowmeter

Vind de beste prijs

Proline Promass Q 300 Coriolis flowmeter

Vind de beste prijs

Proline t-mass F 500 thermal mass flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

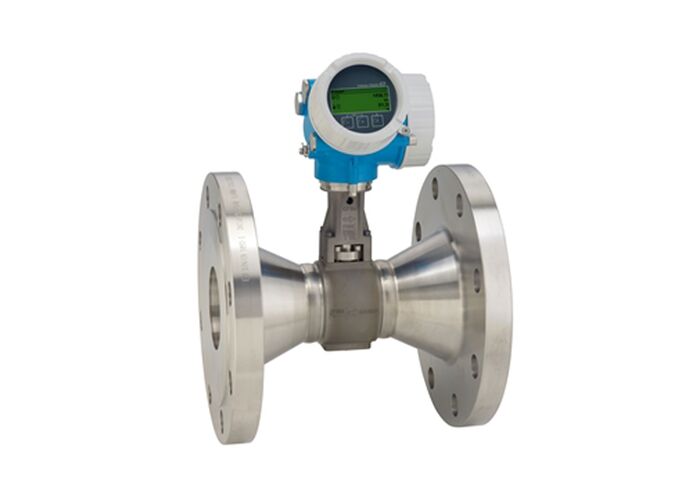

Proline Prowirl R 200 Vortex Flowmeter

Advanced vortex flowmeter designed for low flow applications with best-in-class accuracy, featuring integrated temperature and pressure measurement for comprehensive energy management solutions.

Key Specifications

Measurement Accuracy

Volume flow (liquid): ±0.75%

Volume flow (steam, gas): ±1.00%

Mass flow (saturated steam): ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)

Mass flow (superheated steam, gas): ±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)

Mass flow (liquid): ±0.85%

Measuring Range

Liquid: 0.2 to 540 m³/h (0.15 to 320 ft³/min)

Steam, gas: 1.5 to 7260 m³/h (0.9 to 4270 ft³/min)

Technical Specifications

Parameter	Specification
Medium Temperature Range	Standard: -40 to +260 °C (-40 to +500 °F) High/low temperature (option): -200 to +400 °C (-328 to +752 °F) High/low temperature (on request): -200 to +450 °C (-328 to +842 °F)
Max. Process Pressure	PN 40, Class 300, 20K
Nominal Diameter Range	DN 25 to 250 (1 to 10")
Wetted Materials	Measuring tube: 1.4408 (CF3M) DSC sensor: 1.4404/F316/F316L Process connection: 1.4404/F316/F316L

Field of Application

Designed for low flows and energy management applications. PremiumCal calibration ensures excellent measuring accuracy for maximum plant availability. Genuine loop-powered technology enables cost-effective integration into existing infrastructures with highest operational safety in hazardous areas.

Key Benefits

Easy energy management with integrated temperature and pressure measurement
Cost and time savings - no pipework modifications needed for line size reduction
Same accuracy down to Re 10,000 - most linear Vortex meter body
Long-term stability with robust drift-free capacitive sensor
Convenient device wiring with separate connection compartment
Safe operation - no need to open the device
Integrated verification with Heartbeat Technology

Device Features

Integrated diameter reduction by 1 or 2 line sizes
Nominal diameter (mating pipe) up to DN 250 (10")
Flexible positioning of pressure cell
Display module with data transfer function
Robust dual-compartment housing
Worldwide approvals (SIL, Hazardous area)

Additional Specifications

Category	Details
Measured Variables	Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature
Ambient Temperature Range	Compact version: -40 to +80 °C (-40 to +176 °F) Remote version: -40 to +85 °C (-40 to +185 °F)
Degree of Protection	IP66/67, type 4X enclosure
Digital Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus, PROFINET over Ethernet-APL, Modbus TCP over Ethernet-APL
Power Supply	DC 9 to 35 V depending on configuration
Approvals & Certificates	ATEX, IECEx, cCSAus, CE, C-tick, EAC, functional safety according to IEC 61508
