Plaats van herkomst: | China (vasteland) |
Merknaam: | Kacise |
Certificering: | certificate of explosion-proof, |
Modelnummer: | Kus-M56 |
Min. bestelaantal: | 0-100 |
---|---|
Prijs: | USD129 to USD158 per pc |
Verpakking Details: | elke eenheid heeft individuele doos en alle vakjes worden ingepakt in standaardpakketten of beschikb |
Levertijd: | 5-8 het werkdagen |
Betalingscondities: | T / T, Western Union, MoneyGram |
Levering vermogen: | 1000 stuks per week |

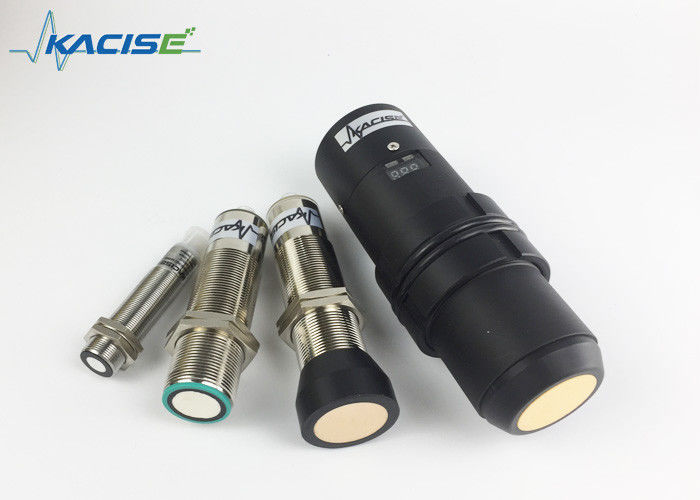

artikel: | Ultrasone afstandssensor | Registratiebereik: | 100mm~6000mm |
---|---|---|---|
Schakelaaroutput: | (Facultatief) PNP/NPN | Bedrijfsspanning: | 24Vdc |
Emissie angleg Voltage: | 20° | IP-Grade: | IP65 (IP66 is facultatief) |
Hoog licht: | Ultrasone niveauzender,ultrasone vloeibare niveausensor |
Hoge resolutie
Korte reactietijd
Digitale buisvertoning die afstand meten
Diverse beschikbare lentes: schakelaar, analogon, of RS232/485
Waaier |
0.1~0.5m, 0.15~1m, 0.3~3m, 0.4~5m, 0.5~6m |
Resolutie |
3mm of 0,1% (die groter zijn) |
Reactietijd |
< 200ms=""> |
Vertoning | Leiden |
Emissiehoek | 20°C |
Analoge output | 4~20mA/500Ω LADING |
Schakelaaroutput | (Facultatief) PNP/NPN |
RS232/485 | MODBUS-(facultatief) protocol of aangepast protocol |
Voeding | Standard 24VDC (±15%) |
Omgevingstemperatuur | -20~+60℃ |
Beschermingsklasse | IP65 (IP66 is facultatief) |
Installatie | M56*2 |
Nota: Slechts één output kan zijn koos onder de drie soorten output. |
5.2 de ultrasone dimensies van de sensorinstallatie
