Name: Proline Promass A 300 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass A 300
Price: 2,540.00 USD
Availability: InStock

Thuis > producten > Elektromagnetische Stroommeter >

Proline Promass A 300 Coriolis flowmeter

Proline Promass A 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

Proline Promass A 300

Neem contact met ons op

Vraag een offerte

Proline Promass A 300 Coriolis flowmeter

Productgegevens

Meetbereik:

0 tot 450 kg/u (0 tot 16,54 lb/min)

Max. verwerkingsdruk:

430,9 bar (6250 psi)

Gemiddelde temperatuurbereik:

-50 tot 205 °C (-58 tot 401 °F)

Omgevingstemperatuurbereik:

-40 tot 60 °C (-40 tot +140 °F)

Het Materiaal van de sensorhuisvesting:

RVS, 1.4404 (316L)

Het materiaal van de zenderhuisvesting:

AlSi10Mg, gecoat; 1.4409 (CF3M) vergelijkbaar met 316L; roestvrij staal voor hygiënisch zenderontwer

Markeren:

Proline Promass A 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Promass S 300 Coriolis flowmeter

Vind de beste prijs

Proline Promass P 500 Coriolis flowmeter

Vind de beste prijs

Proline Promass Q 300 Coriolis flowmeter

Vind de beste prijs

Proline t-mass F 500 thermal mass flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

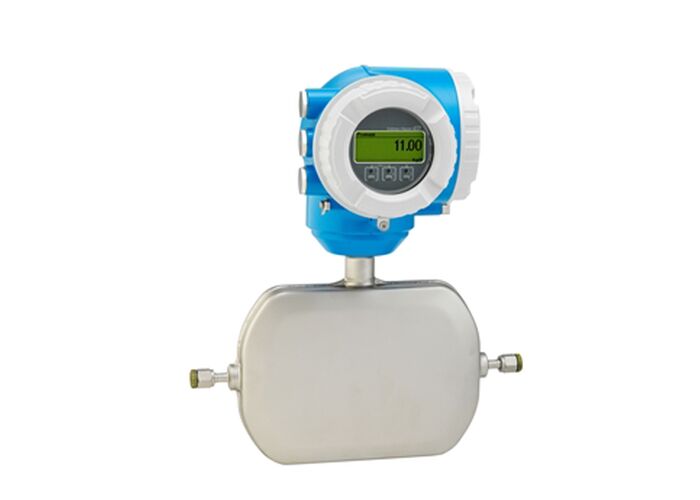

Proline Promass A 300 Coriolis Flowmeter

Accurate single-tube flowmeter for lowest flow rates with a compact, easily accessible transmitter. Suitable for applications with smallest flow quantities in all industries.

Field of Application

Promass A is ideal for continuous process control in very demanding applications. Its unique self-drainable single-tube system enables accurate measurement of liquids and gases at lowest flow rates and high pressure. With its compact transmitter Promass A 300 offers high flexibility in terms of operation and system integration: access from one side, remote display, improved connectivity options. Heartbeat Technology enables measurement reliability and compliant verification.

Key Specifications

Maximum Measurement Error

Mass flow (liquid): ±0.1%
Volume flow (liquid): ±0.1%
Mass flow (gas): ±0.35%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 450 kg/h (0 to 16.54 lb/min)

Medium Temperature

-50 to 205 °C (-58 to 401 °F)

Maximum Process Pressure

430.9 bar (6250 psi)

Device Properties

Sensor Features

Space-saving installation - compact, lightweight sensor
Highest product quality - self-drainable measuring tube in all line sizes
Optimum process safety - resistant to corrosive ambient conditions and internal clogging
Nominal diameter: DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
Process pressure up to 430.9 bar (6250 psi)
Medium temperature up to +205 °C (+401 °F)

Transmitter Features

Full access to process and diagnostic information - numerous, freely combinable I/Os and fieldbuses
Reduced complexity and variety - freely configurable I/O functionality
Integrated verification - Heartbeat Technology
Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available

Technical Specifications

Measuring Principle	Coriolis
Nominal Diameter Range	DN 1 to 4 (¹⁄₂₄ to ¹⁄₈")
Wetted Materials	Measuring tube: stainless steel, 1.4435 (316/316L); Alloy C22
Measured Variables	Mass flow, density, temperature, volume flow, corrected volume flow, reference density
Ambient Temperature Range	-40 to 60 °C (-40 to +140 °F)
Sensor Housing Material	Stainless steel, 1.4404 (316L)
Transmitter Housing Material	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic transmitter design
Degree of Protection	Compact version: IP66/67, type 4X enclosure. External WLAN antenna: IP67, IP69

Inputs & Outputs

Outputs

3 outputs: 4-20 mA HART (active/passive), 4-20 mA WirelessHART, 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs

Status input, 4-20 mA input

Certifications & Approvals

Hazardous Area

ATEX, IECEx, cCSAus, INMETRO, NEPSI, UK Ex

Product Safety

CE, C-TICK

Functional Safety

IEC 61508, applicable in safety-relevant applications per IEC 61511

Pressure Approvals

CRN

Material Certificates

3.1 material

Hygienic Approvals

3-A, cGMP
