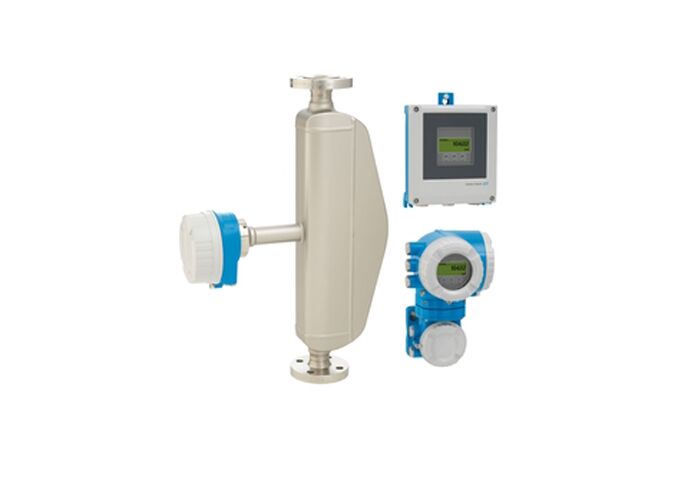

Proline Promass H 500 Coriolis Flowmeter
The highly accurate Promass H 500 is designed for applications requiring maximum corrosion resistance and guarantees optimal safety for chemically aggressive fluids. With its innovative remote transmitter, it maximizes installation flexibility and operational safety in demanding environments.
Key Features
- Maximum safety for chemically aggressive fluids with corrosion-resistant wetted parts
- Multivariable measurement (flow, density, temperature) reducing process measuring points
- Space-saving installation with no inlet/outlet run requirements
- Heartbeat Technology enables integrated verification and process safety
- Freely configurable I/O functionality reducing complexity
Technical Specifications
Measuring Principle: Coriolis
Nominal Diameter: DN 8 to 50 (3/8" to 2")
Measuring Range: 0 to 70,000 kg/h (0 to 2,570 lb/min)
Max Process Pressure: PN 40, Class 300, 20K
Measurement Accuracy
| Measurement Type |
Accuracy |
| Mass Flow (Liquid) |
±0.10% |
| Volume Flow (Liquid) |
±0.10% |
| Mass Flow (Gas, Tantalum only) |
±0.50% |
| Density (Liquid) |
±0.0005 g/cm³ |
Temperature Ranges
| Material |
Temperature Range |
| Tantalum |
-50 to +150 °C (-58 to +302 °F) |
| Zirconium |
-50 to +205 °C (-58 to +401 °F) |
| Ambient (Standard) |
-40 to +60 °C (-40 to +140 °F) |
Wetted Materials
Measuring tube: Tantalum 2.5W; 702 (UNS R60702)
Connection: Tantalum; 702 (UNS R60702)
Transmitter Features
Remote version with up to 4 I/Os, backlit display with touch control and WLAN access. Standard cable between sensor and transmitter.
Communication & Outputs
Digital Communication: HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA
Certifications & Approvals
ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC, CE, C-tick, EAC marking, PED, CRN, and material certificates 3.1.
