Name: Proline Prowirl F 200 vortex flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prowirl F 200
Price: 2,540.00 USD
Availability: InStock

Thuis > producten > Elektromagnetische Stroommeter >

Proline Prowirl F 200 vortex flowmeter

Proline Prowirl F 200 flowmeter

vortex flowmeter with warranty

electromagnetic flow meter industrial

Plaats van herkomst:

Zwitserland

Merknaam:

Endress+Hauser

Certificering:

Modelnummer:

Proline Prowirl F 200

Neem contact met ons op

Vraag een offerte

Productgegevens

Outputs:

4‐20 mA HART (passief)

Invoer:

Invoerstroom 4‐20 mA (passiv)

Goedkeuringen voor gevaarlijke gebieden:

ATEX, IECEx, cCSAus, JPN, EAC

Productveiligheid:

CE, C-TICK, EAC

Functionele veiligheid:

Functionele veiligheid volgens IEC 61508, toepasbaar in veiligheidsrelevante toepassingen volgens IE

Maritieme goedkeuringen en certificaten:

ABS, LR, BV, DNV, CCS

Markeren:

Proline Prowirl F 200 flowmeter

vortex flowmeter with warranty

electromagnetic flow meter industrial

Betaling en verzendvoorwaarden

Min. bestelaantal

1 stks

Verpakking Details

Elke eenheid heeft een individuele doos en alle dozen zijn verpakt in standaardpakketten of beschikb

Levertijd

5-8 WERKDAGEN

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 stuk/stukken per week bespreekbaar

Verwante producten

Proline Promass S 300 Coriolis flowmeter

Vind de beste prijs

Proline Promass P 500 Coriolis flowmeter

Vind de beste prijs

Proline Promass Q 300 Coriolis flowmeter

Vind de beste prijs

Proline t-mass F 500 thermal mass flowmeter

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

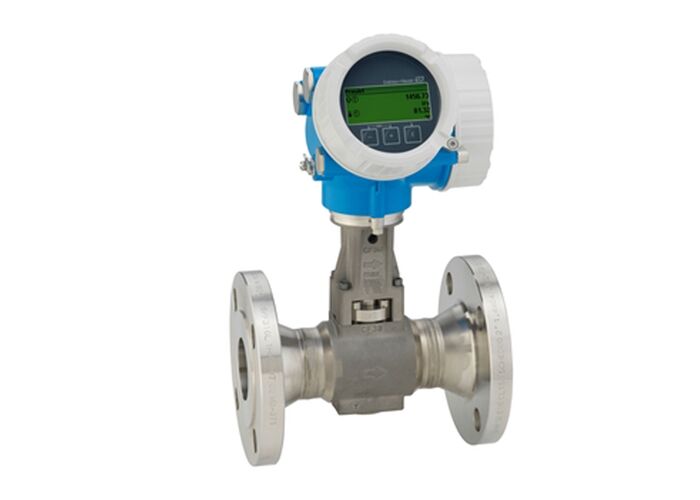

Proline Prowirl F 200 Vortex Flowmeter

Versatile flowmeter with detection of wet steam conditions and best-in-class accuracy. Suitable for a wide range of applications with optimization for steam applications.

Field of Application

Prowirl F is the multivariable flowmeter with inline wet steam measurement. Its calibration option PremiumCal guarantees excellent measuring accuracy and highest plant availability at low flow rates of gas, steam and liquids. With genuine loop-powered technology, Prowirl F 200 enables cost-effective and seamless integration into existing infrastructures. It offers highest operational safety in hazardous areas.

Preferred Applications

Wet/saturated/superheated steam measurement
Gas flow measurement
Liquid flow measurement (including cryogenic)

Key Benefits

Easy energy management - integrated temperature and pressure measurement for steam and gases
Reliable, secure measurement technology - compliance with international Vortex standard ISO 12764
Same accuracy down to Re 10,000 - most linear Vortex meter body
Long-term stability - robust drift-free capacitive sensor
Convenient device wiring - separate connection compartment, various Ethernet options
Safe operation - no need to open the device
Integrated verification - Heartbeat Technology

Technical Specifications

Measuring Principle

Vortex

Measured Variables

Volume flow, mass flow, corrected volume flow, energy flow, heat flow difference, temperature

Accuracy Specifications

Volume flow (liquid)	±0.75%
Volume flow (optional)	±0.65%
Volume flow (steam, gas)	±1.00%
Mass flow (saturated steam)	±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated)
Mass flow (superheated steam, gas)	±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation)
Mass flow (liquid)	±0.85%

Measuring Ranges

Liquid	0.2 to 2100 m³/h (0.15 to 1520 ft³/min) depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, Gas	1.5 to 28000 m³/h (0.9 to 16600 ft³/min) depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)

Operating Conditions

Nominal diameter range	DN 15 to 300 (½ to 12")
Medium temperature range (standard)	-40 to +260 °C (-40 to +500 °F)
Medium temperature range (option)	-200 to +400 °C (-328 to +752 °F)
Max. process pressure	PN 100, Class 600, 20K

Materials & Construction

Measuring tube	1.4408 (CF3M); CX2MW similar to Alloy C22, 2.4602
DSC sensor	1.4404 (316/316L); UNS N06022 similar to Alloy C22, 2.4602
Process connection	1.4404/F316/F316L; 2.4602
Sensor housing material	AlSi10Mg, coated; 1.4408 (CF3M)
Transmitter housing material	AlSi10Mg, coated; 1.4404 (316L)

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC
Product Safety: CE, C-TICK, EAC, UK Ex
Functional Safety: IEC 61508, applicable per IEC 61511
Marine: ABS, LR, BV, DNV, CCS
Pressure: PED, CRN, AD 2000
Metrological: ISO/IEC 17025, ISO 9001:2015 (Heartbeat Technology)
Materials: 3.1 material, NACE MR0175/MR0103
