Name: KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FS1
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > Environmental Monitoring >

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Plaats van herkomst:

China

Merknaam:

KACISE

Certificering:

Modelnummer:

KQS-FS1

Neem contact met ons op

Vraag een offerte

KQS-FS1 Wind Speed Sensor Anemometer with Low Starting Wind Speed ≤ 0.8 m/s Wide Voltage Power Supply and Multiple Signal Output Options

Productgegevens

Meetbereik:

0-45 m/s (analoge uitgang) / 0-70 m/s (digitaal/pulsuitgang)

Beginnende windsnelheid:

≤ 0,8 m/s

Nauwkeurigheid:

±(0,5 + 0,02V) m/s

Oplossing:

0,1 m/s

Voeding:

5 V of 9-30 V DC breedspanning optioneel

Signaaluitgang:

4-20 mA / 0-20 mA, 0-2,5 V / 0-5 V / 1-5 V, RS485 / RS232 optioneel

Betaling en verzendvoorwaarden

Min. bestelaantal

1 st

Verpakking Details

Elke eenheid heeft een individuele doos, alle dozen zijn verpakt in standaardpakketten of op verzoek

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 Stuk/Stukken per Week bespreekbaar

Verwante producten

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Vind de beste prijs

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Vind de beste prijs

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Vind de beste prijs

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

KQS-FS1 Wind Speed Sensor

Product Overview

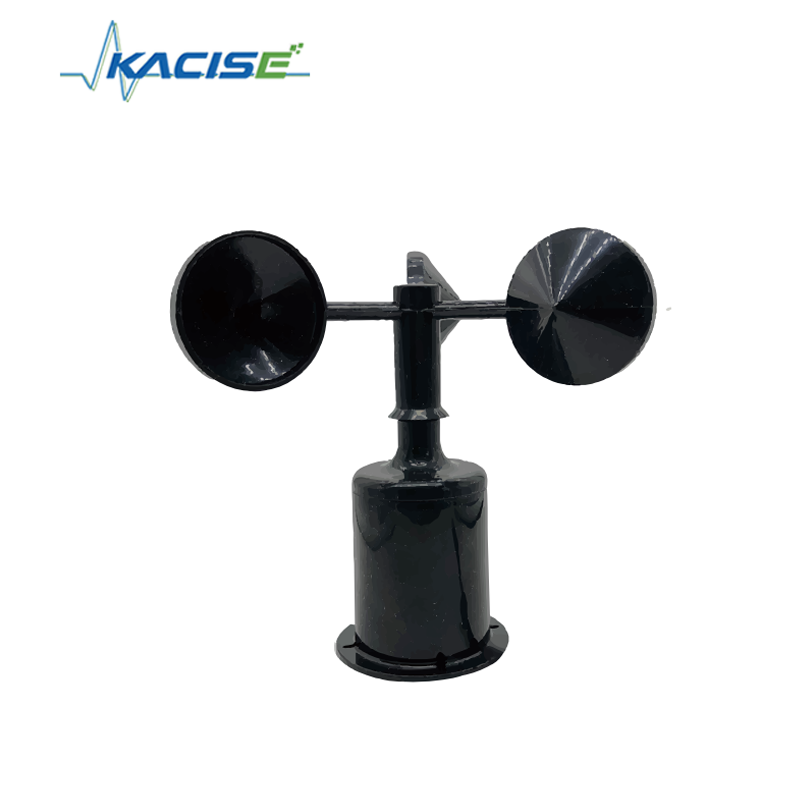

The KQS-FS1 wind speed sensor adopts a traditional three-cup anemometer structure. The wind cups are made of high-strength ABS material, providing excellent durability and low starting wind speed. The built-in signal processing unit can output corresponding wind speed signals according to user requirements, supporting RS485/RS232 communication, pulse output, voltage output, or current output.

This sensor is widely used in advertising barrier systems, meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture, industry, and transportation applications.

Product Features

Independently patented design and development; each sensor is calibrated in a wind tunnel
Uses high-quality bearings, ensuring low starting wind speed and stable performance
Easy to install, compatible with bottom or side cable outlet mounting

Technical Parameters

Item	Parameter
Measuring range	□ 0-45 m/s (current/voltage output) □ 0-70 m/s (pulse / RS485 / RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5V or optional 9-30V wide-voltage supply
Net weight	125 g
Signal output	Current: □ 4-20 mA / □ 0-20 mA Voltage: □ 0-2.5 V / □ 0-5 V / □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
