Name: KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-BG-M
Price: 5,000.00 USD
Availability: InStock

Thuis > producten > Environmental Monitoring >

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

Plaats van herkomst:

China

Merknaam:

KACISE

Certificering:

Modelnummer:

KQS-BG-M

Neem contact met ons op

Vraag een offerte

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

Productgegevens

Gemeten parameters:

Verlichtingssterkte, temperatuur, vochtigheid, CO2-concentratie

Temperatuurbereik:

-20 tot 50°C (analoog) / -40 tot 100°C (digitaal)

Vochtigheidsbereik:

0-100% RH

CO2-bereik:

0-5000 ppm

Beschermingsgraad:

IP65

Nauwkeurigheid:

Temperatuur: ±0,3°C; Vochtigheid: ±5% RH; CO2: ±(50 ppm+5%); Licht: ±4%

Betaling en verzendvoorwaarden

Min. bestelaantal

1 st

Verpakking Details

Elke eenheid heeft een individuele doos, alle dozen zijn verpakt in standaardpakketten of op verzoek

Levertijd

5-8 werkdagen

Betalingscondities

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Levering vermogen

1000 Stuk/Stukken per Week bespreekbaar

Verwante producten

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

Vind de beste prijs

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

Vind de beste prijs

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

Vind de beste prijs

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

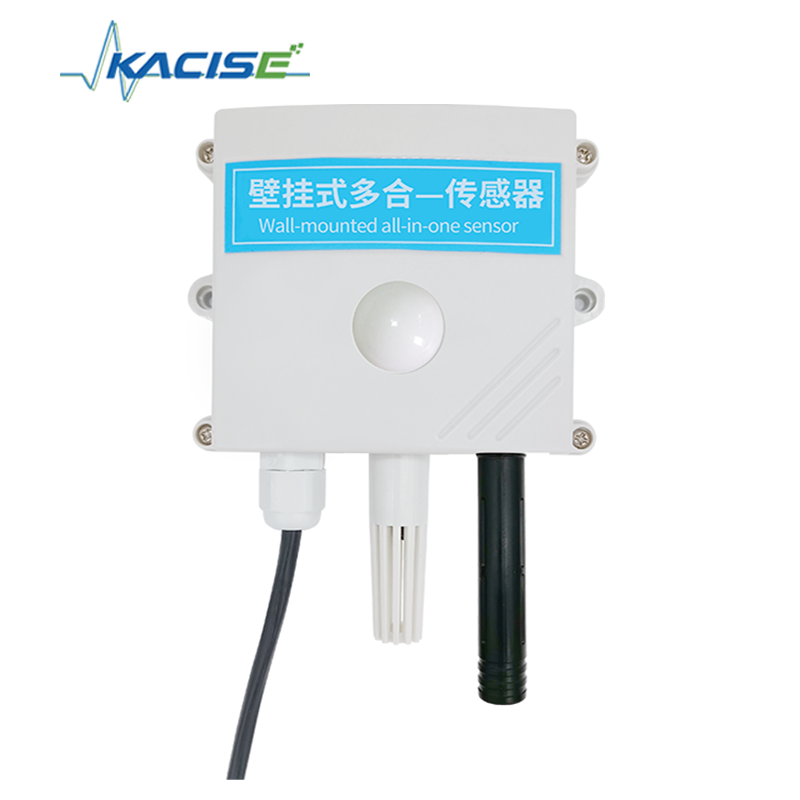

KQS-BG-M Wall-Mounted Multi-Parameter Sensor

The KQS-BG-M wall-mounted multi-parameter sensor is an integrated device designed for measuring environmental parameters such as illuminance, temperature, humidity, and CO2 concentration. It features a high-protection housing with an IP65 rating, offering resistance to rain and snow while maintaining good breathability.

The product adopts an industrial-grade microprocessor chip imported from the United States and a high-precision temperature and humidity sensing chip imported from Switzerland, ensuring excellent reliability, high accuracy, and strong interchangeability. The sensor supports RS485/RS232 communication interfaces and standard Modbus protocol, making it easy to connect with other data acquisition systems. It can also output up to 4 channels of analog signals (current and voltage outputs). Digital outputs support Modbus or ASCII protocols, enabling secondary development with stable performance and easy installation.

Product Features

Factory dual calibration ensures high measurement accuracy
Secondary linear calibration provides stable and reliable data output

Technical Parameters

Item	Specification
Range	Temperature: -20-50°C (analog output) -40-100°C (digital output) Humidity: 0-100% RH CO₂: 0-5000 ppm Light: 0-200,000 Lux (indoor) 0-65,535 Lux (outdoor)
Accuracy	Temperature: ±0.3°C Humidity: ±5% RH CO₂: ±(50 ppm + 5%) Light: ±4%
Resolution	Temperature: 0.1°C Humidity: 0.1% RH CO₂: 1 ppm Light: 1 Lux
Power supply	5 V or 9-30 V wide-voltage optional
Signal output	Current: □ 4-20 mA □ 0-20 mA Voltage: □ 0-2.5 V □ 0-5 V □ 1-5 V Serial: □ RS485 / RS232 optional

Dimensions
